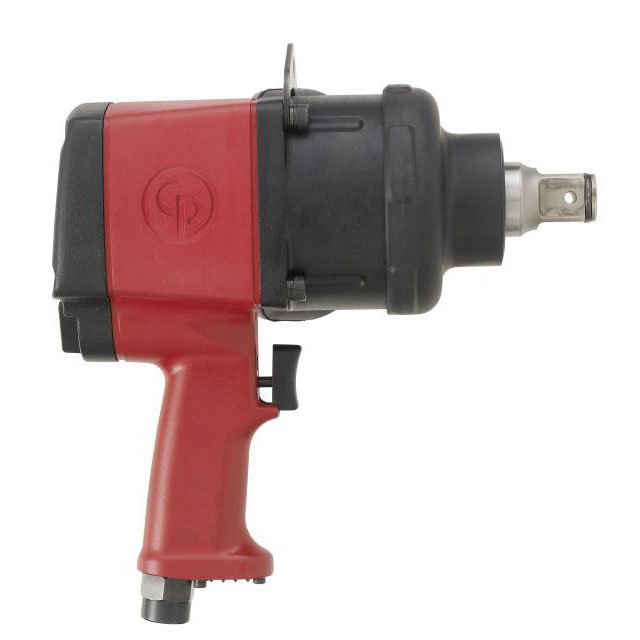

Chicago Pneumatic CP6910-P24 | Industrial Impact Wrench | 1" Drive, 500–2100 Nm
Rated for 500–2100 Nm (370–1550 ft.lbs), the CP6910-P24 is a 1" industrial impact wrench from Chicago Pneumatic. It suits a variety of heavy industrial maintenance applications.
- Oil-bath Pinless Rocking Dog clutch
- Ergonomic features for operator comfort
- 3-part construction to reduce maintenance downtime
- Maximum reverse torque: 2600 Nm (1920 ft.lbs); free speed 5000 rpm
- Net weight 10.2 kg (22.5 lb), length 290 mm (11.4 in)
- 1/2" air inlet with minimum hose 13 mm (1/2 in); actual air consumption 19 l/s (40.2 cfm)
- Specifications
- Features
| Part Number | CP6910-P24 |
| Brand | Chicago Pneumatic |
| Square Drive | 1" |
| Working Torque Range | 500–2100 Nm (370–1550 ft.lbs) |
| Maximum Torque (Reverse) | 2600 Nm (1920 ft.lbs) |
| Free Speed | 5000 rpm |
| Net Weight | 10.2 kg (22.5 lb) |
| Length | 290 mm (11.4 in) |
| Air Inlet Thread | 1/2" |
| Min. Hose Size | 13 mm (1/2 in) |
| Air Consumption (Actual) | 19 l/s (40.2 cfm) |
| Product Number | 6151590070 |
| Sound Pressure | 97 dB(A) |
| Vibration | 8.9 m/s² |
- 1" Industrial Pistol impact wrench
- Oil Bath Pinless rocking dog clutch
- Durable Aluminum body & Rubber protective cover on clutch housing
- D-type side handle with Rubber grip
- Dual (hole & ring) type socket retainer
- Removable hole plate for suspension
- Metal trigger & reverse knob for longer durability
- 3-positions regulator & easy reverse
