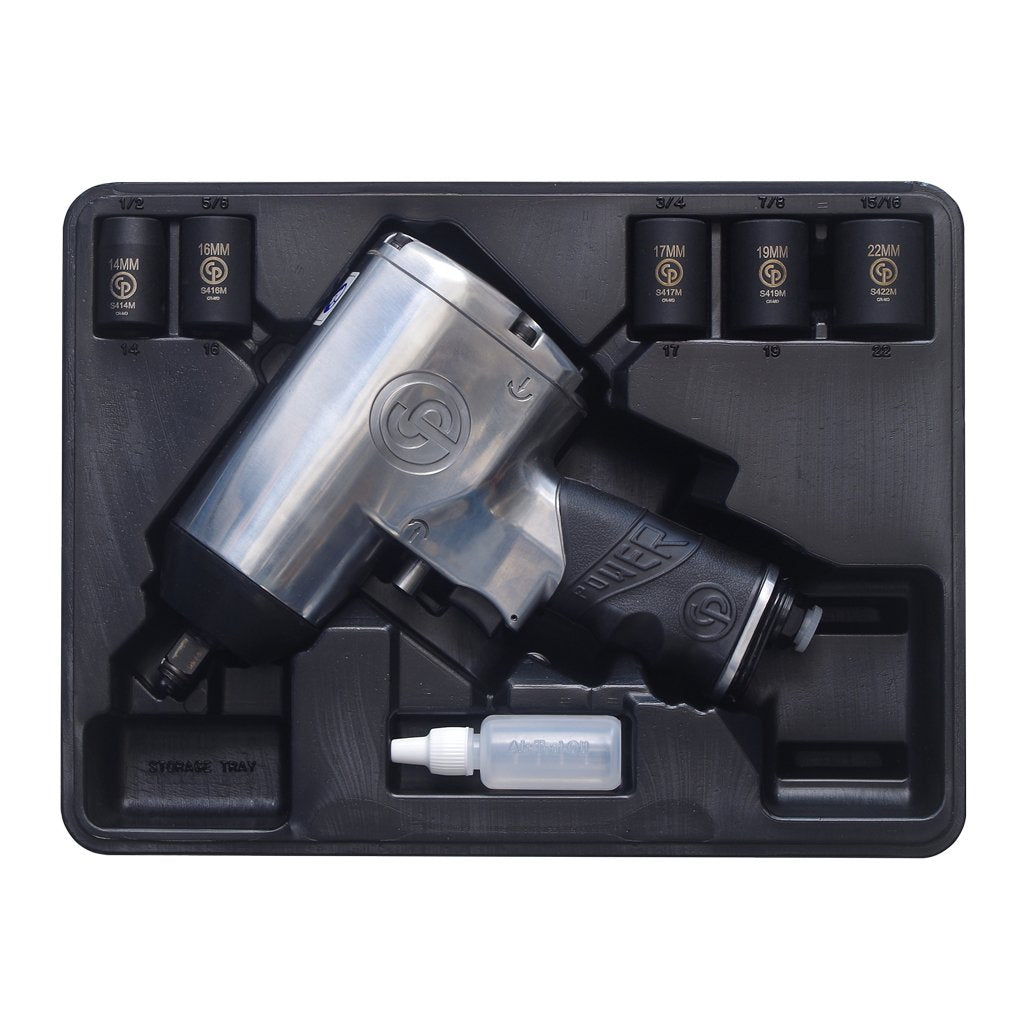

Chicago Pneumatic CP749 Kit Metric | Impact Wrench Kit, Metric | 1/2" Drive, 68–610 Nm
Rated for 68–610 Nm (50–450 ft.lbs), the CP749 Kit Metric is a 1/2" impact wrench kit from Chicago Pneumatic. Supplied as a metric kit, it suits general maintenance and repair tasks.
- Metric kit
- Powerful motor built to resist rough use
- Reverse button reachable with one hand
- Up to 827 Nm (610 ft.lbs) in reverse; runs at 6400 rpm free speed
- 178 mm (7 in) long and 2.5 kg (5 1/2 lb) in weight
- Air inlet thread 1/4", min. hose 10 mm (3/8 in); consumes 10.4 l/s (22 cfm) of air in use
- Specifications
| Part Number | CP749 Kit Metric |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Kit | Metric kit |
| Working Torque Range | 68–610 Nm (50–450 ft.lbs) |
| Maximum Torque (Reverse) | 827 Nm (610 ft.lbs) |
| Free Speed | 6400 rpm |
| Net Weight | 2.5 kg (5 1/2 lb) |
| Length | 178 mm (7 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 10.4 l/s (22 cfm) |
| Product Number | T025194 |
| Sound Pressure | 96 dB(A) |
