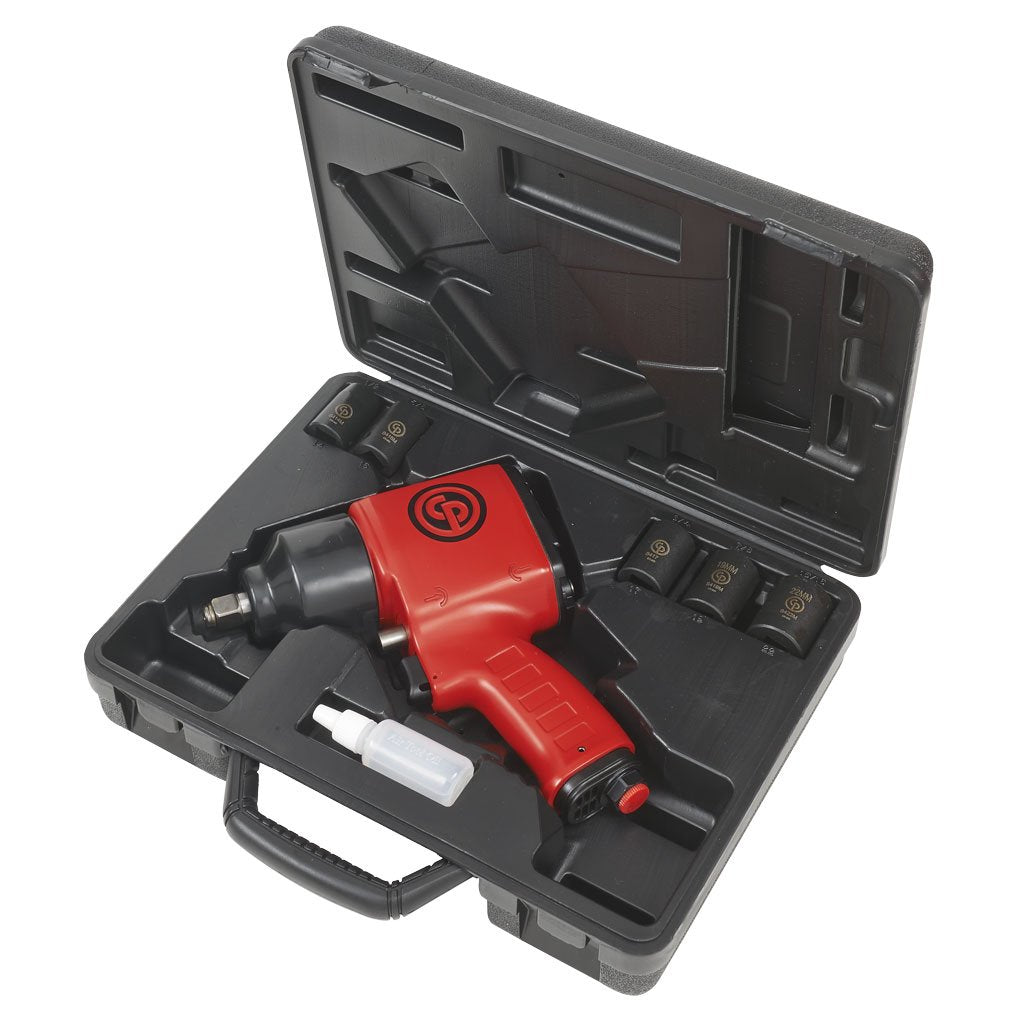

Chicago Pneumatic CP7620KIT | Impact Wrench Kit | 1/2" Drive, 34–420 Nm
Rated for 34–420 Nm (25–310 ft.lbs), the CP7620KIT is a 1/2" impact wrench kit from Chicago Pneumatic. It is intended for general repair, transmission work, exhaust systems and body shops.
- Curved handle and smooth-running clutch
- Rugged and easy to operate
- Up to 576 Nm (425 ft.lbs) in reverse; runs at 10000 rpm free speed
- Weighs 2.33 kg (5.1 lb) and measures 180 mm (7.1 in)
- Air inlet thread 1/4"; actual air consumption 8.4 l/s (17.7 cfm)
- Vibration 4.9 m/s²; sound pressure 94 dB(A)
- Specifications
- Features
| Part Number | CP7620KIT |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Working Torque Range | 34–420 Nm (25–310 ft.lbs) |
| Maximum Torque (Reverse) | 576 Nm (425 ft.lbs) |
| Free Speed | 10000 rpm |
| Net Weight | 2.33 kg (5.1 lb) |
| Length | 180 mm (7.1 in) |
| Air Inlet Thread | 1/4" |
| Air Consumption (Actual) | 8.4 l/s (17.7 cfm) |
| Product Number | 8941176200 |
| Sound Pressure | 94 dB(A) |
| Vibration | 4.9 m/s² |
- Pin clutch mechanism in oil bath
- One-handed push button forward/reverse with 2 power setting positions in both sides
- Full power in reverse
- Double teasing trigger
- Curved handle
- Aluminum body with composite cover
- Through handle air exhaust and 360° air inlet swivel
