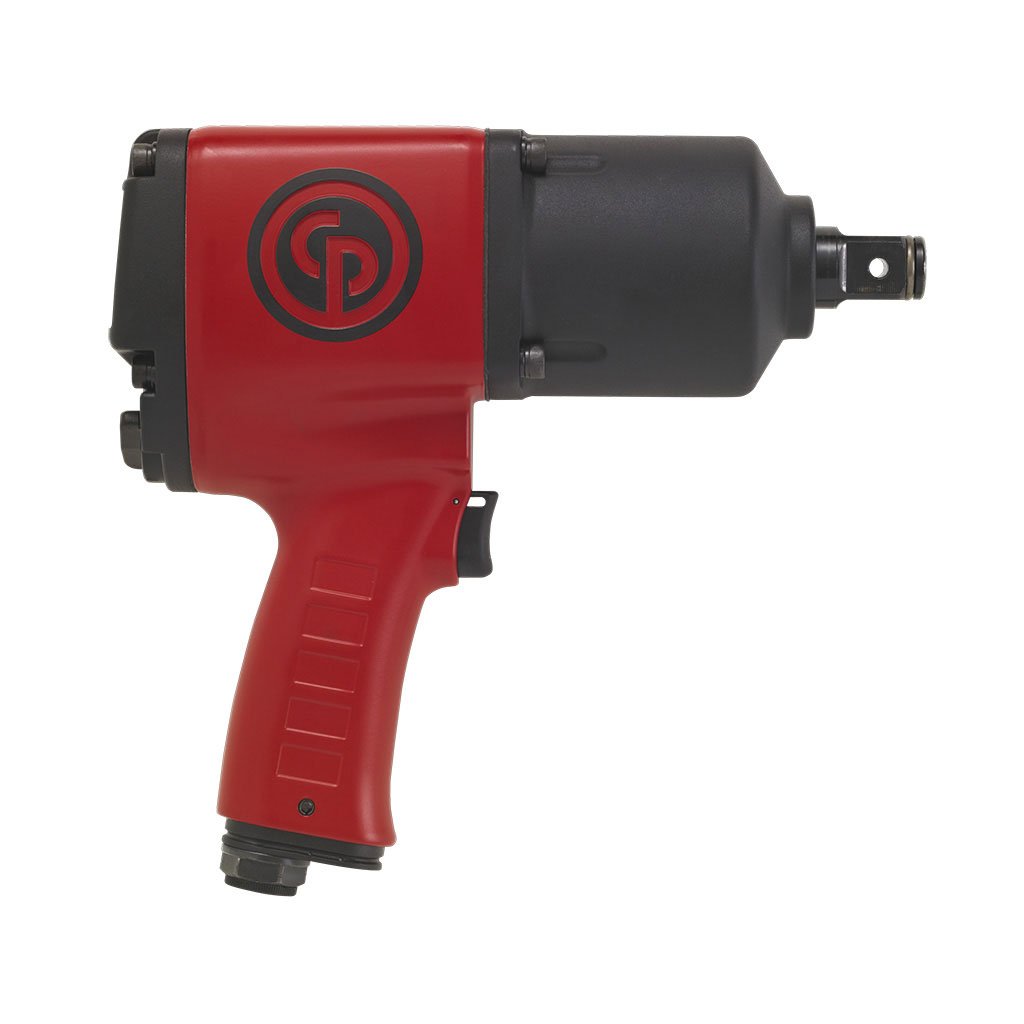

Chicago Pneumatic CP7630 | Impact Wrench | 3/4" Drive, 177–1097 Nm
With a 3/4" square drive and 177–1097 Nm (130–810 ft.lbs) of working torque, the Chicago Pneumatic CP7630 is an impact wrench. It is a powerful, versatile and compact tool.
- Powerful and versatile
- Comfortable, compact design
- Maximum reverse torque: 1500 Nm (1100 ft.lbs); free speed 6900 rpm
- Net weight 4.8 kg (10.648 lb), length 240 mm (9.45 in)
- 3/8" air inlet with minimum hose 13 mm (1/2 in); actual air consumption 9.7 l/s (21 cfm)
- Sound pressure 105.3 dB(A)
- Specifications
- Features
| Part Number | CP7630 |
| Brand | Chicago Pneumatic |
| Square Drive | 3/4" |
| Working Torque Range | 177–1097 Nm (130–810 ft.lbs) |
| Maximum Torque (Reverse) | 1500 Nm (1100 ft.lbs) |
| Free Speed | 6900 rpm |
| Net Weight | 4.8 kg (10.648 lb) |
| Length | 240 mm (9.45 in) |
| Air Inlet Thread | 3/8" |
| Min. Hose Size | 13 mm (1/2 in) |
| Air Consumption (Actual) | 9.7 l/s (21 cfm) |
| Product Number | 8941076300 |
| Sound Pressure | 105.3 dB(A) |
- 1500 Nm – 1100 ft / lbs
- Well balanced minimizing wrist strain
- Handle fits perfectly in the hand
- Suited for all maintenance applications
- - Vans & Heavy vehicles mechanical repair
- - MRO applications
- Not marketed in USA and Canada
