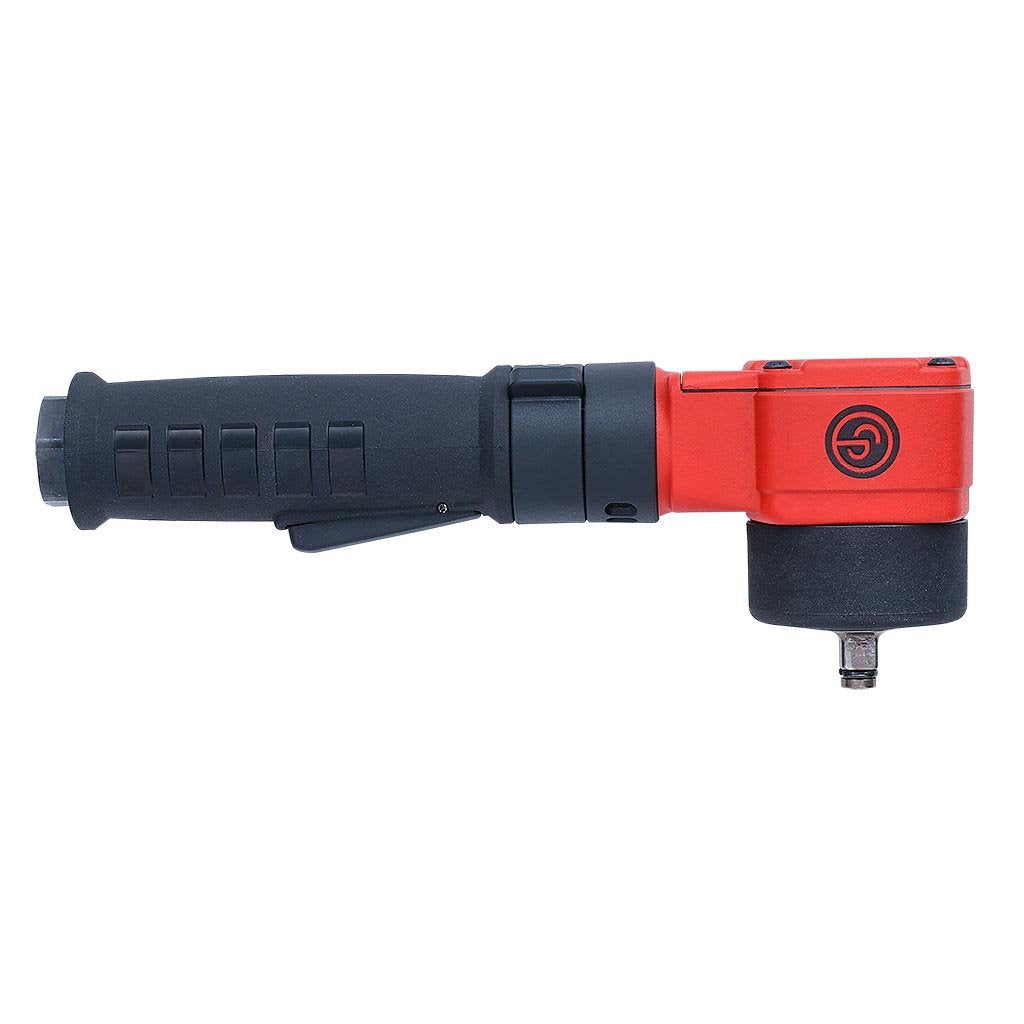

Chicago Pneumatic CP7727 | Compact Impact Wrench | 3/8" Drive, 26–192 Nm
Rated for 26–192 Nm (20–140 ft.lbs), the CP7727 is a 3/8" compact impact wrench from Chicago Pneumatic. A compact, durable tool with single-handed forward/reverse operation.
- 3 power positions in forward and 1 in reverse
- Compact, durable build
- Good control and easy operation
- Maximum reverse torque: 250 Nm (185 ft.lbs); free speed 8510 rpm
- Net weight 1.12 kg (2 1/2 lb), length 240 mm (9.4 in)
- 1/4" air inlet with minimum hose 10 mm (3/8 in); actual air consumption 7.4 l/s (16 cfm)
- Specifications
- Features
| Part Number | CP7727 |
| Brand | Chicago Pneumatic |
| Square Drive | 3/8" |
| Working Torque Range | 26–192 Nm (20–140 ft.lbs) |
| Maximum Torque (Reverse) | 250 Nm (185 ft.lbs) |
| Free Speed | 8510 rpm |
| Net Weight | 1.12 kg (2 1/2 lb) |
| Length | 240 mm (9.4 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 7.4 l/s (16 cfm) |
| Product Number | 8941077270 |
| Sound Pressure | 93 dB(A) |
| Vibration | 10.3 m/s² |
- Jumbo hammer mechanism
- Steel motor
- Composite cover
- Direct drive transmission mechanism
- 9.8 in -240 mm length & 3.46 in. (88 mm) height
- 220 ft.lbs - 300 Nm of maximum torque in reverse (for 1/2’’ model)
- 2.46 lbs. – 1.12 Kg
- Over molded composite and ergonomic handle to fit perfectly in hand
- Full teasing trigger
- Single handed Forward – Reverse operation
- 3 positions in forward and 1 in reverse
- Socket retainer ring
