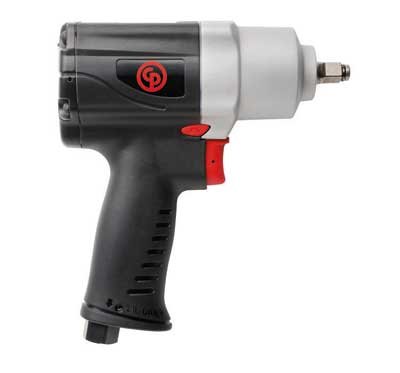

Chicago Pneumatic CP7729 | Impact Wrench | 3/8" Drive, 68–407 Nm
The Chicago Pneumatic CP7729 is a 3/8" impact wrench with a working torque range of 68–407 Nm (50–300 ft.lbs). It is intended for general maintenance.
- Side-2-Side reverse technology for balance and power
- Very light, well-balanced design for operator comfort
- Maximum reverse torque: 563 Nm (415 ft.lbs); free speed 9400 rpm
- Net weight 1.25 kg (2.78 lb), length 163 mm (6.4 in)
- 1/4" air inlet with minimum hose 10 mm (3/8 in); actual air consumption 9.4 l/s (20 cfm)
- Sound pressure 91 dB(A), vibration 6.4 m/s²
- Specifications
- Features
| Part Number | CP7729 |
| Brand | Chicago Pneumatic |
| Square Drive | 3/8" |
| Working Torque Range | 68–407 Nm (50–300 ft.lbs) |
| Maximum Torque (Reverse) | 563 Nm (415 ft.lbs) |
| Free Speed | 9400 rpm |
| Net Weight | 1.25 kg (2.78 lb) |
| Length | 163 mm (6.4 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 9.4 l/s (20 cfm) |
| Product Number | 8941077290 |
| Sound Pressure | 91 dB(A) |
| Vibration | 6.4 m/s² |
- 3/8" compact impact wrench for general maintenance
- Twin hammer clutch
- Composite handle and magnesium clutch housing
- S2S technology and 3 positive power settings
- Full teasing trigger
