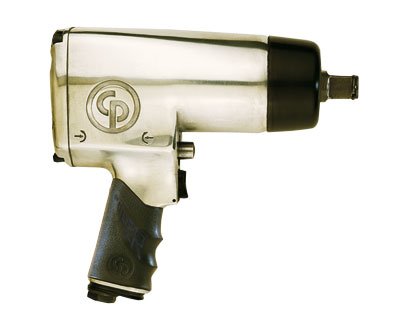

Chicago Pneumatic CP772H | Impact Wrench | 3/4" Drive, 203–949 Nm
Rated for 203–949 Nm (150–700 ft.lbs), the CP772H is a 3/4" impact wrench from Chicago Pneumatic. General maintenance is its intended application.
- DYNA-PACT clutch for smooth operation; low noise and vibration levels
- Good durability
- Maximum reverse torque: 1356 Nm (1000 ft.lbs); free speed 4200 rpm
- Net weight 4.76 kg (10.5 lb), length 245 mm (9.63 in)
- Air inlet thread 3/8"; actual air consumption 11.3 l/s (24 cfm)
- Manufacturer product number T024598
- Specifications
- Features
| Part Number | CP772H |
| Brand | Chicago Pneumatic |
| Square Drive | 3/4" |
| Working Torque Range | 203–949 Nm (150–700 ft.lbs) |
| Maximum Torque (Reverse) | 1356 Nm (1000 ft.lbs) |
| Free Speed | 4200 rpm |
| Net Weight | 4.76 kg (10.5 lb) |
| Length | 245 mm (9.63 in) |
| Air Inlet Thread | 3/8" |
| Air Consumption (Actual) | 11.3 l/s (24 cfm) |
| Product Number | T024598 |
| Sound Pressure | 96 dB(A) |
| Vibration | 5.8 m/s² |
- 3/4" impact wrench with ring retainer
- DYNA-PACT oil bath clutch
- Single handed reverse button with 4 settings of power
- Comfortable handle grip
- 360° air inlet swivel
