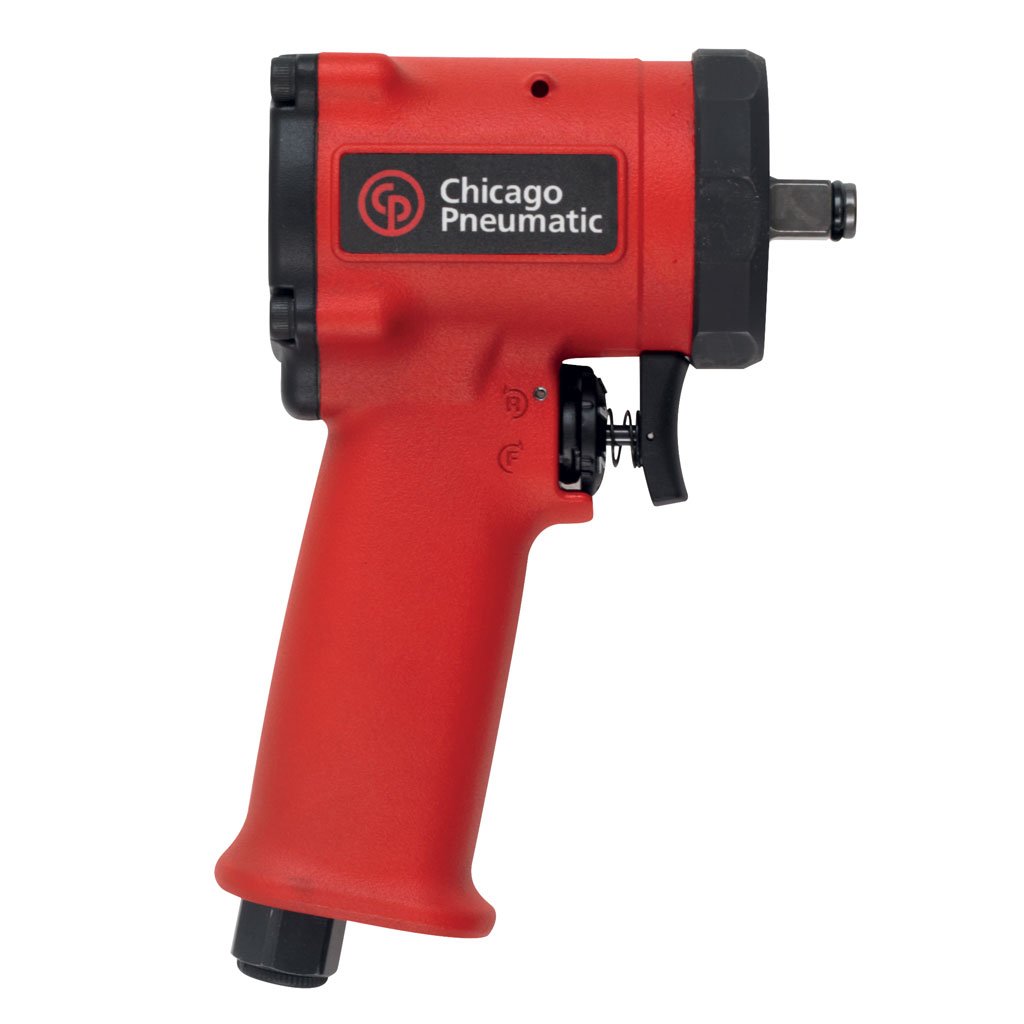

Chicago Pneumatic CP7731 | Ultra-Compact Impact Wrench | 3/8" Drive, 96–328 Nm
Rated for 96–328 Nm (71–240 ft.lbs), the CP7731 is a 3/8" ultra-compact impact wrench from Chicago Pneumatic. It is an ultra-compact, easy-to-use tool.
- Up to 415 Nm (306 ft.lbs) torque
- Ultra-compact body
- Durable and easy to use
- Maximum reverse torque: 415 Nm (305 ft.lbs); free speed 6400 rpm
- Net weight 1.3 kg (2.9 lb), length 112 mm (4.4 in)
- 1/4" air inlet with minimum hose 10 mm (3/8 in); actual air consumption 8.3 l/s (18 cfm)
- Specifications
- Features
| Part Number | CP7731 |
| Brand | Chicago Pneumatic |
| Square Drive | 3/8" |
| Working Torque Range | 96–328 Nm (71–240 ft.lbs) |
| Maximum Torque (Reverse) | 415 Nm (305 ft.lbs) |
| Free Speed | 6400 rpm |
| Net Weight | 1.3 kg (2.9 lb) |
| Length | 112 mm (4.4 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 8.3 l/s (18 cfm) |
| Product Number | 8941077310 |
| Sound Pressure | 93 dB(A) |
| Vibration | 8.5 m/s² |
- Steel front cover & Aluminum body
- One hand operation forward – reverse by either left or right handed users
- Easily adjustable for either right or left handed operation
- 3 setting positions
- Length: 4.4" = 112 mm as can size
- Jumbo hammer
