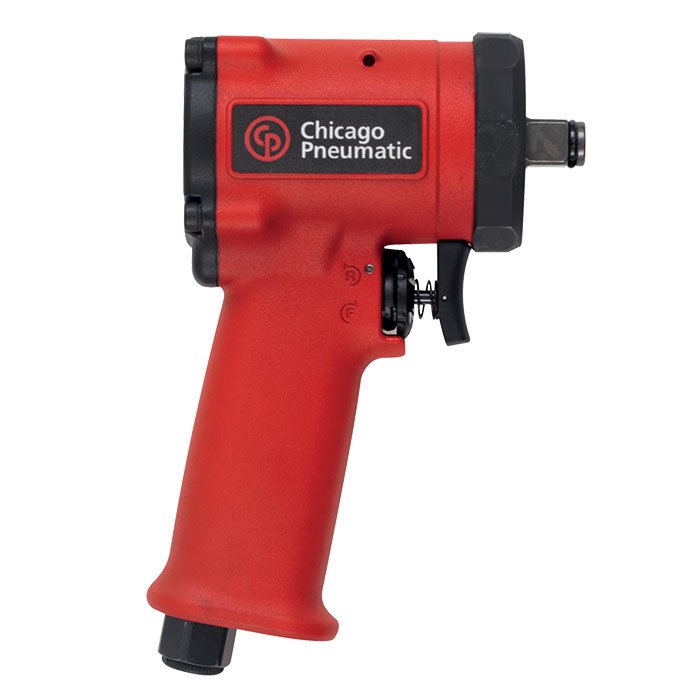

Chicago Pneumatic CP7732 | Ultra-Compact Impact Wrench | 1/2" Drive, 138–420 Nm
With a 1/2" square drive and 138–420 Nm (102–310 ft.lbs) of working torque, the Chicago Pneumatic CP7732 is an ultra-compact impact wrench. An ultra-compact, durable 1/2" tool that is easy to use.
- Up to 610 Nm (450 ft.lbs) torque
- Ultra-compact construction
- Maximum reverse torque: 610 Nm (450 ft.lbs); free speed 9000 rpm
- Net weight 1.3 kg (2.9 lb), length 112 mm (4.4 in)
- 1/4" air inlet with minimum hose 10 mm (3/8 in); actual air consumption 9 l/s (19.6 cfm)
- Sound pressure 95 dB(A)
- Specifications
- Features
| Part Number | CP7732 |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Working Torque Range | 138–420 Nm (102–310 ft.lbs) |
| Maximum Torque (Reverse) | 610 Nm (450 ft.lbs) |
| Free Speed | 9000 rpm |
| Net Weight | 1.3 kg (2.9 lb) |
| Length | 112 mm (4.4 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 9 l/s (19.6 cfm) |
| Product Number | 8941077320 |
| Sound Pressure | 95 dB(A) |
