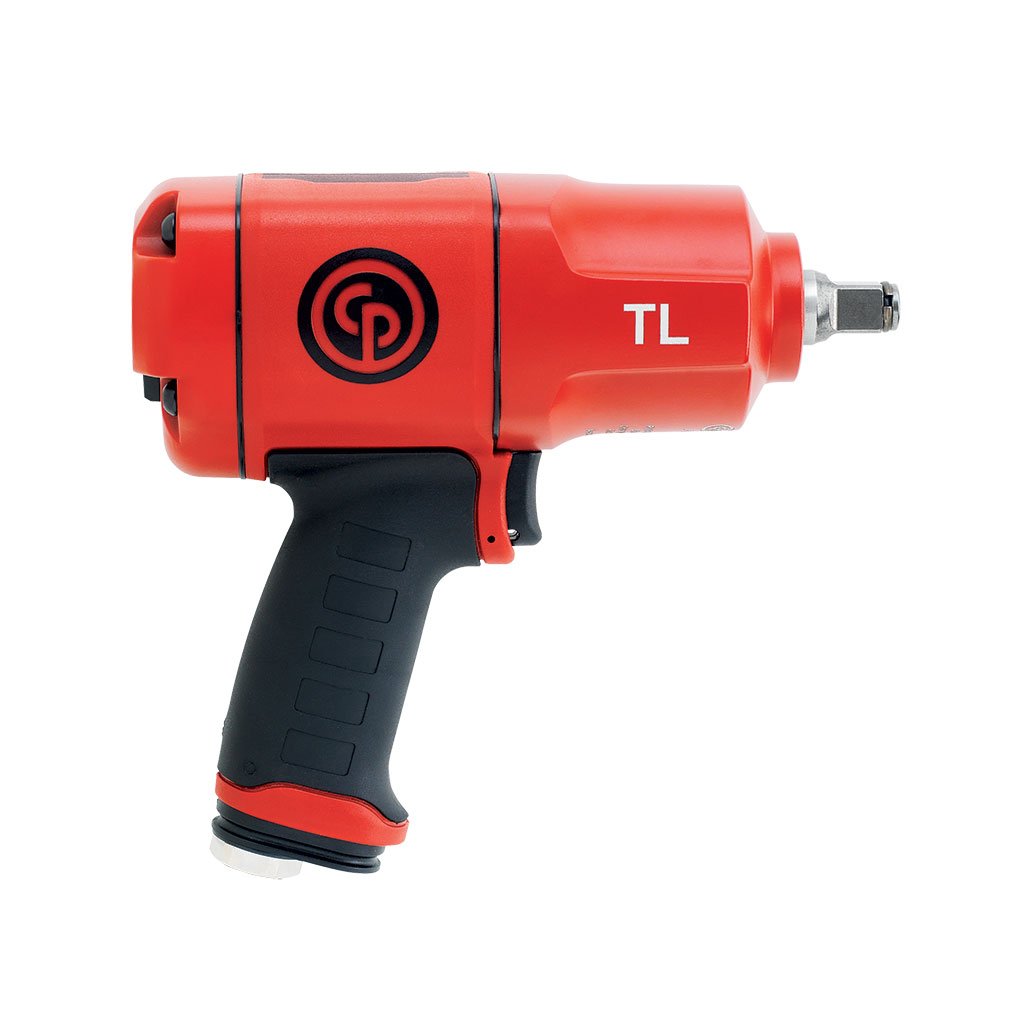

Chicago Pneumatic CP7748TL 1/2 Impact Wrenches 90-96NM
Torque Limited in forward and Extreme Torque in reverse. Torque limited in forward: 60/70 ft. Lbs. - 90/100 Nm. Full power in reverse. One Hand Operation: 2 power setting positions. Insulation & Comfort: Contoured comfort grip handle instead of TPR injected in handle. Low sound level. Suited for all light vehicle tire changing applications.Range: 90 - 96 Nm 66 - 70 ft.lbs
- Specifications
- Features
Actual air consumption | Metric: 10 l/s Imperial: 5 1/2 cfm |
Air inlet thread size | 1/4" |
Average air consumption | Metric: 2 1/2 l/s Imperial: 5 1/2 cfm |
Brand | Chicago Pneumatic |
Free Speed | 8200 rpm |
Length | Metric: 200 mm Imperial: 7.8" |
Maximum Torque (reverse) | Metric: 1250 Nm Imperial: 920 ft.lbs |
Min. Hose Size | Metric: 10 mm Imperial: 3/8" |
Model Number | CP7748TL |
Net weight | Metric: 2.2 kg Imperial: 4.8 lb |
Power/weight ratio | Metric: 568.2 Nm/kg Imperial: 192.1 ft.lb/lb |
Product Number | 8941077484 |
Range Imperial | 66 - 70 ft.lbs |
Range Metric | 90 - 96 Nm |
Side to center | Metric: 38 mm Imperial:1 1/2" |
Sound Power | 97 db(A) |
Sound pressure | 86 db(A) |
Square Drive | 1/2" |
Vibration uncertainty (K) | 1 1/2 m/s2 |
Vibration | 4.8 m/s2 |
- 1/2" composite impact wrench with friction ring socket retainer
- 2 setting positions : one in Reverse and one Torque Limited in forward
- 60/70 ft. lbs. - 90/100 Nm in torque limited position in forward
- 920 ft.lbs - 1,250Nm of maximum torque in reverse
- Aluminum clutch & rear housings
- Thermo-plastic rubber injected in housing - Resistant to most chemicals used in workshops
- Universal & durable twin hammer mechanism
- Full teasing trigger
- 360° swivel air inlet
- The CP7748TL series is intended to be used as a “snugging” tool prior to final tightening with a calibrated torque wrench to reach the car manufacturer’s specified torque rating for wheel assembly.
- Torque results vary greatly depending on the type of wheel, air pressure, run time and many other factors.
