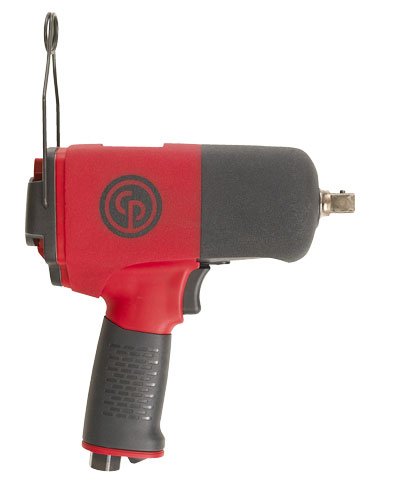

Chicago Pneumatic CP8252-P | Pneumatic Impact Wrench | 1/2 in drive, 150-750 Nm
Covering 150-750 Nm (110-553 ft.lbs) through its 1/2 in square drive, the Chicago Pneumatic CP8252-P air impact wrench runs at 9,000 rpm free speed. A multi-purpose wrench for industrial maintenance and production, it offers controllable power for precise assembly with low noise and limited vibration.
- Free speed 9,000 rpm, net weight 2 kg (4.4 lb)
- Overall length: 200 mm (7.9 in)
- 1/4 in air inlet, minimum hose 10 mm, actual air use 12 l/s (25.4 cfm)
- Sound pressure 94 dB(A), vibration 8.8 m/s²
- Manufacturer product number 6151590210
- Specifications
- Features
| Part Number | CP8252-P |
| Brand | Chicago Pneumatic |
| Drive | 1/2 in |
| Working torque range | 150-750 Nm (110-553 ft.lbs) |
| Free speed | 9,000 rpm |
| Net weight | 2 kg (4.4 lb) |
| Length | 200 mm (7.9 in) |
| Air inlet thread | 1/4 in |
| Min. hose size | 10 mm (3/8 in) |
| Air consumption (actual) | 12 l/s (25.4 cfm) |
| Sound pressure level | 94 dB(A) |
| Vibration | 8.8 m/s² |
| Manufacturer product number | 6151590210 |
- 1/2" impact with pin retainer
- Powerful & durable twin hammer clutch
- Composite body and aluminum clutch housing
- 3 power settings in forward & full power in reverse
- Protective cover & suspension bail
- Progressive trigger & Rubber grip
