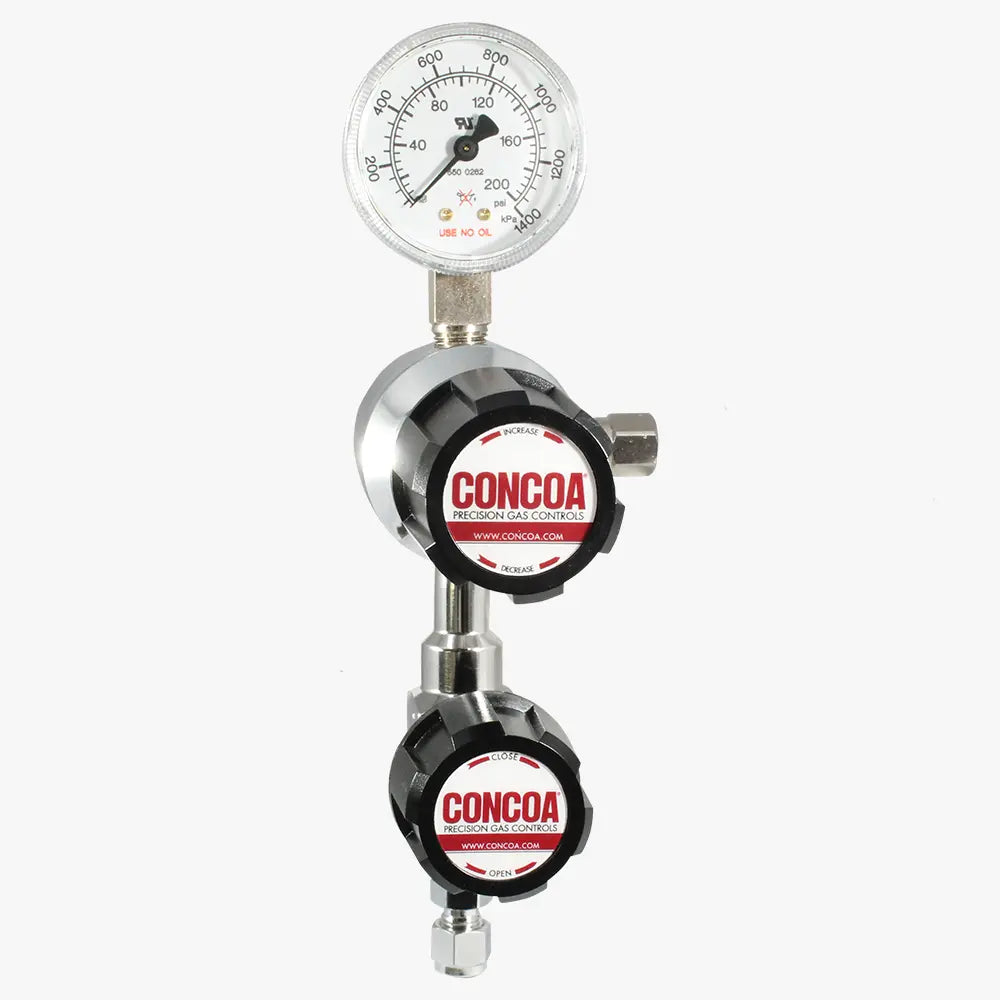

CONCOA 307 Series | Rear Entry Line Regulator | 3000 PSIG Inlet, Rear Entry Port
Part Number : CONCOA-307-SERIES-REGULATOR
The CONCOA 307 Series is a rear entry regulator for secondary control of non-corrosive, liquefied and high purity inert gases up to grade 5.5. Its rear inlet port allows on-wall or in-wall piping, which is why it is common on point-of-use panels and in laboratories. It is configured to order, so the delivery range, gauges, inlet and outlet connections and any options are selected at the time of ordering.
- Rear entry inlet for on-wall or in-wall piping
- Low wetted surface area keeps purge needs small
- Maximum inlet pressure (bare body): 3000 PSIG (210 BAR)
- Body: Chrome-plated brass barstock; bonnet: chrome-plated, die-cast zinc
- Diaphragm: 316L stainless steel; seat: PTFE
- Filter: 10-micron sintered bronze
- Helium leak integrity 1 x 10⁻⁸ scc/sec; Cv 0.1
For pricing, please contact our experts.
