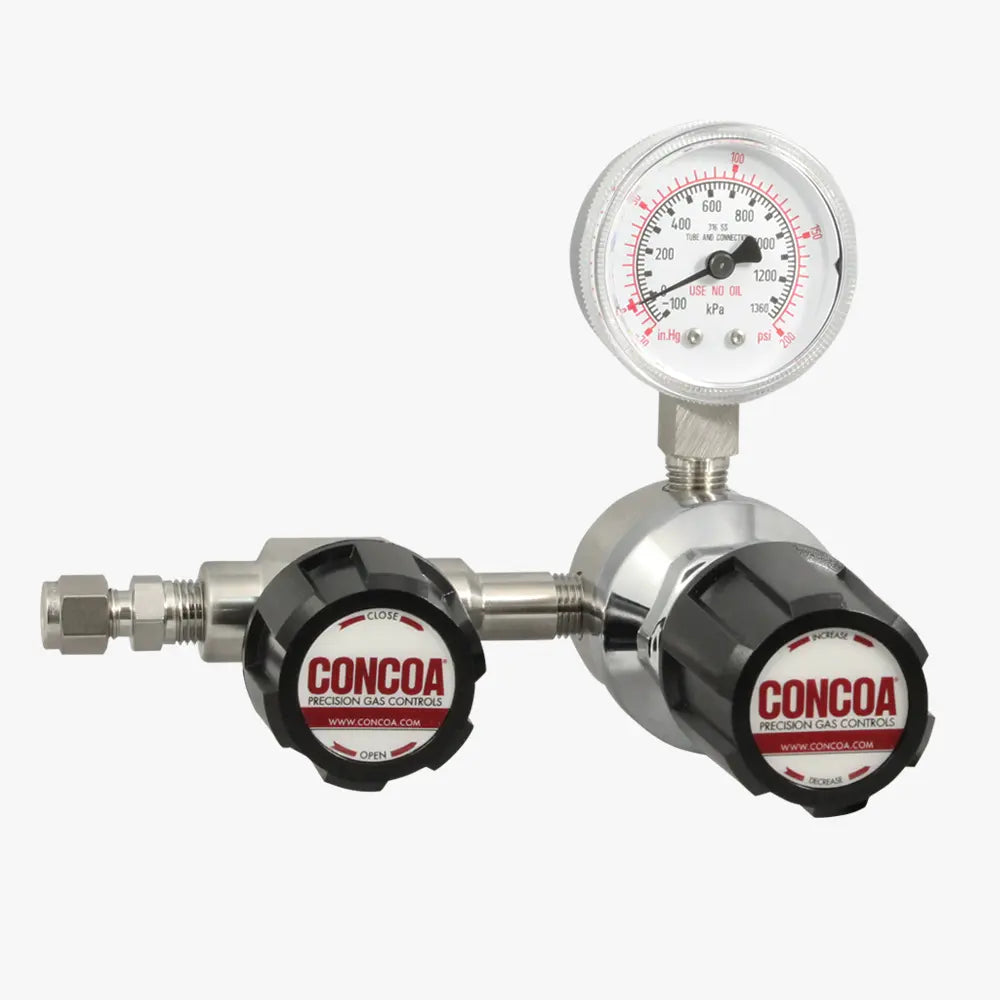

CONCOA 324 Series | Stainless Steel Line Regulator | 316L Stainless Body, Full Cylinder Rating
Part Number : CONCOA-324-SERIES-REGULATOR
The CONCOA 324 Series provides secondary pressure control of high purity gases (to grade 5.5) in a 316L stainless steel body. Because it is rated to full cylinder pressure, it works well for point-of-use control in high purity distribution systems. Mildly reactive gases are acceptable; toxic or highly corrosive gases are not. There is no fixed part number for the 324 Series; units are built to an ordering code that specifies outlet range, gauges, connections and options.
- Rear panel mounting simplifies installation
- Low wetted surface area keeps purge needs small
- Maximum inlet pressure (bare body): 3000 PSIG (210 BAR)
- Body: 316L stainless steel barstock; bonnet: chrome-plated, die-cast zinc
- Diaphragm: 316L stainless steel; seat: PTFE
- Filter: Patented 10-micron 316 stainless steel mesh
- Helium leak integrity 1 x 10⁻⁸ scc/sec; Cv 0.1
For pricing, please contact our experts.
