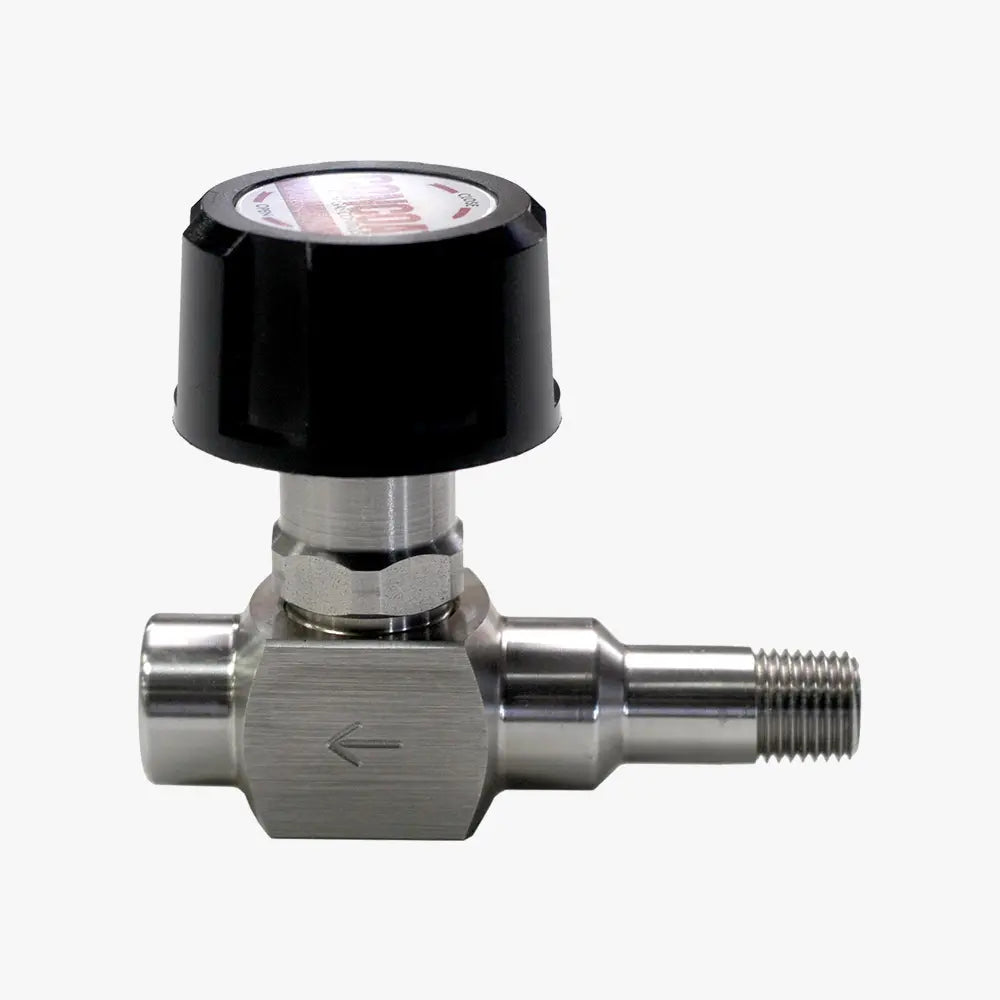

CONCOA 533 Series Multi-Turn | Diaphragm Valve | 3500 PSIG Inlet, 0.17 Cv
Part Number : CONCOA-533-SERIES-MULTI-TURN-DIAPHRAGM-VALVE
The CONCOA 533 Series multi-turn diaphragm valve gives primary flow control for ultra-high purity or corrosive gases, with low-torque operation and flow permitted in either direction. Typical installations include high-pressure process lines, gas cabinets and valve manifold boxes in semiconductor plants.
This series is configured to order: connections and options are selected when the ordering code is built, and the body can be specified in brass barstock, 316L stainless steel, chrome-plated brass barstock or Silicon CVD coated material.
Key features
- Metal-to-metal diaphragm seal with Elgiloy® diaphragm and PCTFE seat
- Bi-directional design keeps control under all pressure conditions, including vacuum
- Springless construction with low wetted surface area limits particle generation
- Spectrometric helium leak check verifies integrity of 1 x 10⁻⁹ scc/sec
- Maximum inlet 3500 PSIG (240 BAR); 0.17 Cv; -40°F to 140°F (-40°C to 60°C)
For pricing, please contact our experts.
