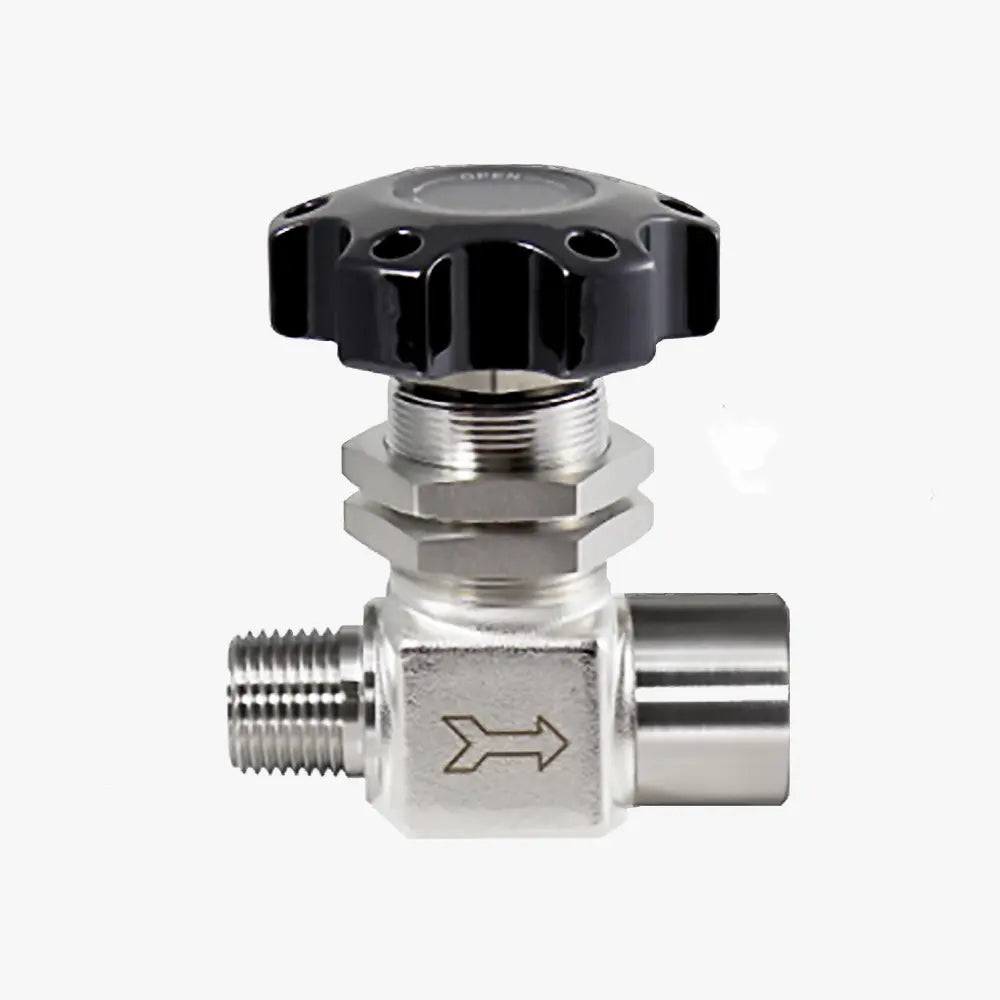

CONCOA 5338002-01-001 | 533 Series High Flow Diaphragm Valve | 1/2 in MNPT x 1/2 in FNPT, Cv 0.30, 3500 PSIG
Part Number : 5338002-01-001
The 5338002-01-001 high flow diaphragm valve from CONCOA has 1/2 in MNPT x 1/2 in FNPT connections, a Cv of 0.30 and is rated to 3500 PSIG (240 BAR) inlet. Maximum differential back pressure is 3500 PSIG (240 BAR), and the valve suits primary or pipeline control in high purity or corrosive gas service.
Key features
- Soft PCTFE seat ensures leak-free positive shut-off.
- Assembled in a cleanroom so it installs clean.
- Body is forged 316L stainless steel; diaphragms are Elgiloy.
- Helium leak integrity 2 x 10⁻⁸.
For pricing, please contact our experts.
