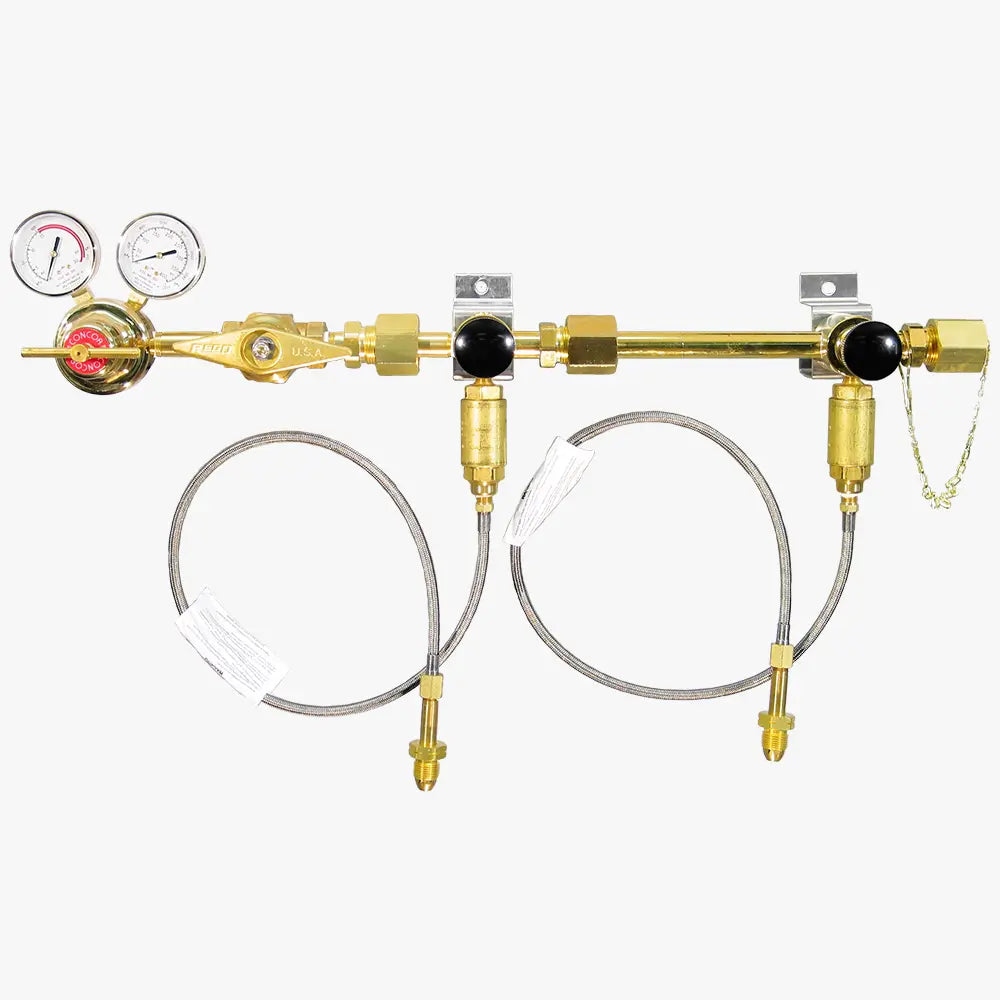

CONCOA 631 Series | Simplex Manifold | Up to 9 Cylinders, 6000 SCFH, 1/2 in FNPT
Part Number : CONCOA-631-SERIES-SIMPLEX-MANIFOLD
The CONCOA 631 Series Simplex Manifold takes up to nine high pressure cylinders on the left or right side and is paired with the heavy-duty 6700 Series line regulator for high flow industrial use. Line or station regulators at the point of use keep downstream pressure constant, and fuel gas service requires flashback arrestors on the hoses.
CONCOA builds the 631 Series from an ordering code, so outlet range, gauges, connections and options are chosen on order; listed choices are copper, brass or flexible stainless steel hoses and 12 in (305 mm) standard or 6 in (162 mm) compact cylinder spacing.
- Max flow 6000 SCFH (2830 LPM)
- Max inlet 3000 PSIG (210 BAR)
- 1/2 in FNPT outlet connection
- Brass barstock regulator body, forged brass bonnet and master valve
- Integral modular manifold for installation and expansion
- Weight 23 lbs (10.4 kg)
For pricing, please contact our experts.
