CONCOA 633 Series | Duplex Manual Manifold | Two Banks, 6000 SCFH, 1/2 in FNPT
Part Number : CONCOA-633-SERIES-DUPLEX-MANIFOLD

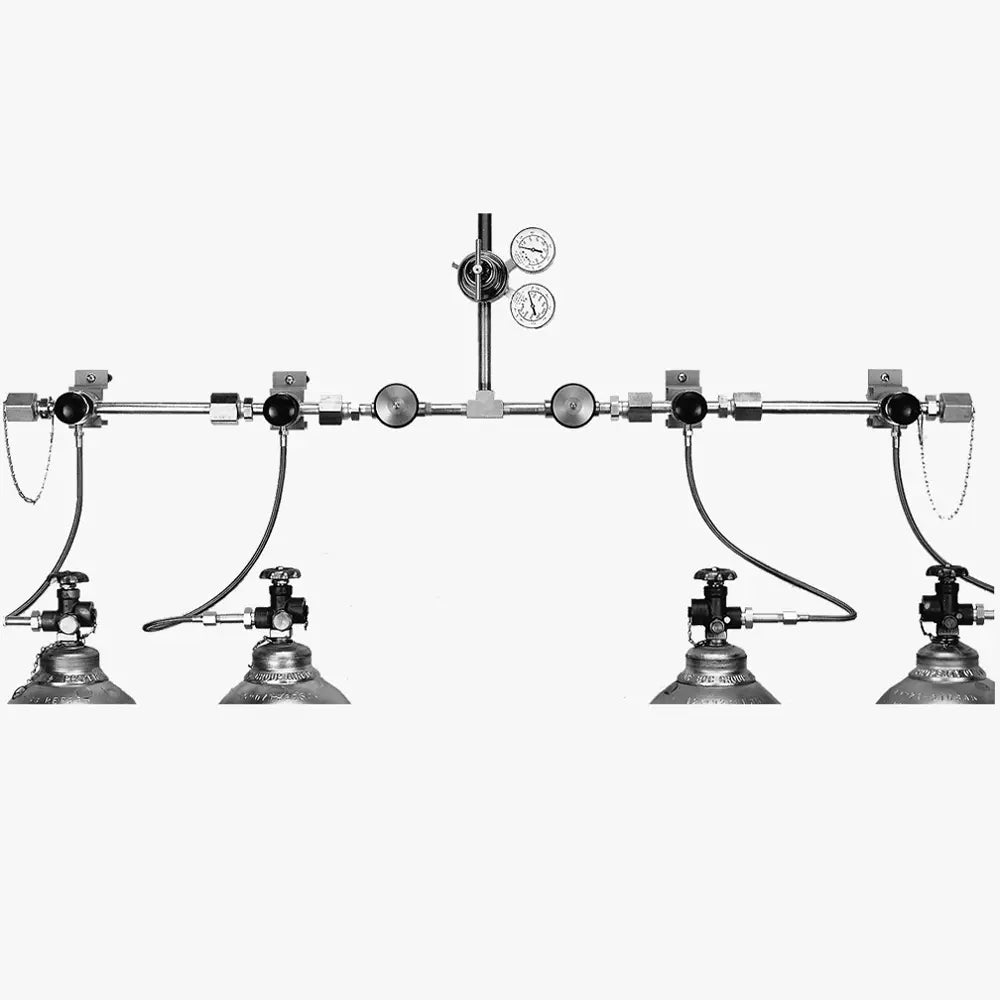

The CONCOA 633 Series Duplex Manifold is a manual switchover serving two banks of high pressure cylinders, for sites that prefer to control supply by hand. A heavy-duty valve sets bank priority and the integral 6700 Series line regulator provides high flow. Line or station regulators belong at the point of use, and fuel gases need flashback arrestors on the hoses.
Ordering the 633 means building a code: outlet range, gauges, connections and options are chosen at that stage, with delivery ranges from 0-15 PSIG (0-1 BAR) to 0-200 PSIG (0-14 BAR).
- Up to nine cylinders on the left and right side
- Integral maniflex manifold system for expansion
- Max flow 6000 SCFH (2830 LPM), max inlet 3,000 PSIG (210 BAR)
- 1/2 in FNPT outlet connection
- Forged brass bonnet and master valve
- Weight 23 lbs (10.4 kg)
For pricing, please contact our experts.
