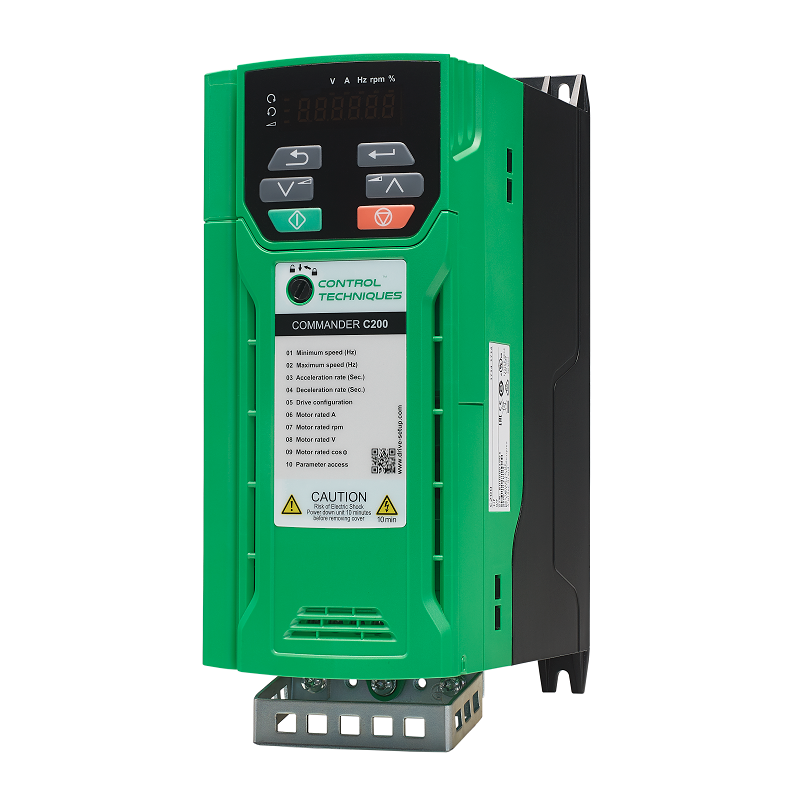

Control Techniques C200-01200042A | Commander C200 Variable Speed Drive | 0.75 kW, 1-Phase 200/240 V
This Commander C200 unit, part number C200-01200042A, controls motors of up to 0.75 kW (1 hp) on a single-phase 200/240 V AC supply, with 4.2 A maximum continuous current. Commander C drives are intended as compact AC motor speed controllers, and getting this 0.75 kW unit running takes only four parameters.
- 0.75 kW / 1 hp on a 1-phase 200/240 V AC supply
- 4.2 A maximum continuous current
- Supply 50/60 Hz; output range 0.5–590 Hz
- Housing: IP21 enclosure, 137 x 75 x 130 mm, 0.75 kg
- Overload capacity of up to 180% on this 0.75 kW drive
- Onboard PLC plus plug-in options for advanced control on the C200-01200042A
- Specifications
- Features
- Downloads
| Part Number | C200-01200042A |
| Brand | Control Techniques |
| Series | Commander C200 |
| Max Continuous Current | 4.2 A |
| Supply | Single-phase 200/240 V AC |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.5–590 Hz |
| Enclosure | IP21 |
| Dimensions | 137 x 75 x 130 mm (5.4 x 3.0 x 5.1 in) |
| Weight | 0.75 kg (1.65 lb) |
| Motor Shaft Power | 0.75 kW / 1 hp |
| Overload | Up to 180% |
| Commissioning | 4 parameters to start |
- Adaptable to your application
- Integrated functional safety
- On-board PLC
- Compact design
- Super quick start-up
- Flexible connectivity
- Worldwide availability and outstanding service
