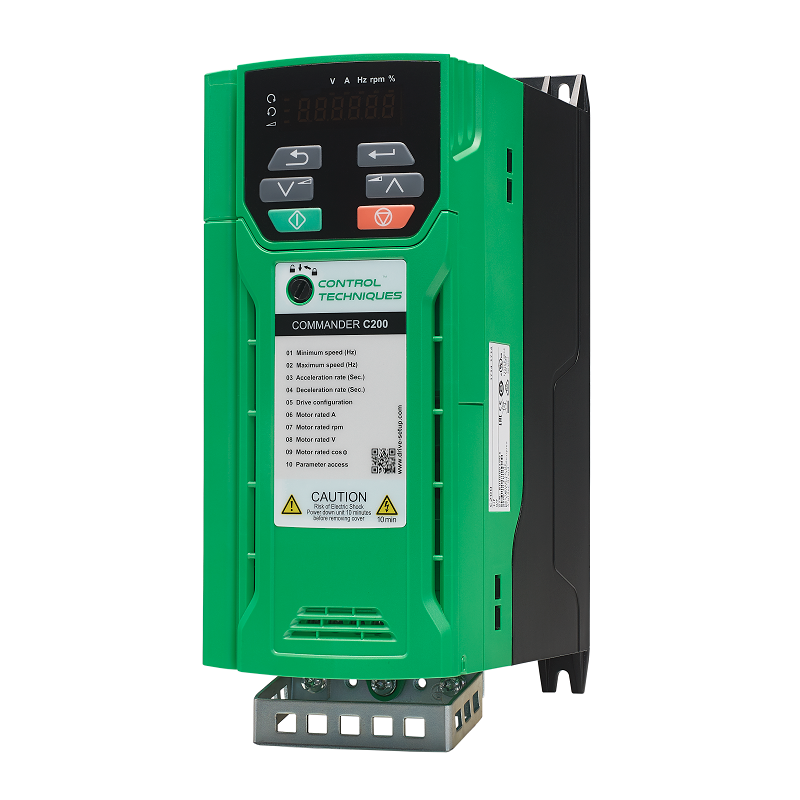

Control Techniques C200-02200024A | 0.37kW, Single/Three Phase, 200/240V AC, | Commander C | Variable Speed Drive
The Control Techniques C200-02200024A is a compact 0.37kW (0.5 hp) Commander C variable speed drive for 1/3 phase, 200-240V motors, built for fast 4-parameter start-up and reliable day-to-day speed control. In stock at General Tech Services LLC, UAE, with free UAE shipping.
Request a quote in under a minute - call +971 6 5436933.
Part No. C200-02200024A
Small pumps, fans and conveyor sections rarely need a complicated drive - they need one that is quick to wire, quick to commission, and dependable for years. The C200-02200024A is Control Techniques' entry-level Commander C variable speed drive, rated for 0.37 kW (0.5 hp) motors on a 1/3 phase, 200-240V AC supply. It fuses dependability with efficiency in a genuinely compact IP21 enclosure measuring just 180 x 75 x 150 mm, so it drops into tight panel space without a redesign.
Inside that small footprint sits a full feature set: dual Safe Torque Off (STO) safety function, an integrated brake transistor, PID control for closed-loop process regulation, and an onboard PLC for basic sequencing - functions that would otherwise need separate hardware. The output frequency range of 0.5-590 Hz gives fine control across a wide speed band, and the 50/60 Hz input frequency support means the same unit works cleanly on regional supply variations across the UAE and GCC.
Need more shaft power for the next machine on the line? The C200-02200033A 0.55kW carries the identical footprint and safety features one step up in output current, so upgrading later doesn't mean re-engineering the panel.
Key Benefits
- Just 4 parameters to set for a fast, simple start-up - commission and go
- Dual Safe Torque Off (STO) integrated safety function as standard
- Onboard PLC for basic programming without extra hardware
- Integrated brake transistor and PID control for process applications
- Compact IP21 enclosure (180 x 75 x 150 mm) for tight panel space
- Free UAE-wide shipping with genuine, warrantied stock
Call +971 6 5436933 for pricing and stock availability
Who This Product Is Best For
- Small workshop pumps, extract fans and light conveyor sections on a single or three-phase 200-240V supply
- OEM panel builders who need a genuinely compact drive for space-constrained enclosures
- Facilities standardising on the Commander C platform across multiple small motor loads
How to Specify & Commission It
- Confirm the C200-02200024A nameplate rating (0.37 kW, 200-240V, 1/3 phase) matches your motor and supply.
- Mount the drive in a ventilated panel or enclosure following the Control Techniques installation guide.
- Wire the supply, motor and control terminals, then power up and set the 4 core start-up parameters.
- Commission against the motor and process, verify STO and protection settings, then hand the system over.
Frequently Asked Questions
How quickly can the C200-02200024A be commissioned?
Just 4 parameters need to be set to get the drive started, in line with Control Techniques' Commander C design goal of a fast, simple start-up.
What safety functions are built in?
Dual Safe Torque Off (STO) is integrated as standard, alongside an onboard brake transistor for controlled deceleration.
What size motor does the C200-02200024A suit?
It's rated for 0.37 kW (0.5 hp) motors on a 200-240V AC, 1/3 phase input supply.
Can it run on either single-phase or three-phase power?
Yes - the drive accepts a 1/3 phase, 200-240V supply, giving flexibility where three-phase isn't available.
Should I choose the C200-02200024A or the C200-02200033A?
Compare your motor's nameplate current and power against both drives. The C200-02200033A steps up to 0.55 kW / 3.3 A for slightly larger loads in the identical compact housing - call our team and we'll confirm the right match.
Does GeneralTech ship this drive across the UAE?
Yes, free UAE-wide shipping is available on genuine Control Techniques stock. Call +971 6 5436933 to check current lead time and place an order.
For pricing or to place an order, contact General Tech Services LLC. Call +971 6 5436933
