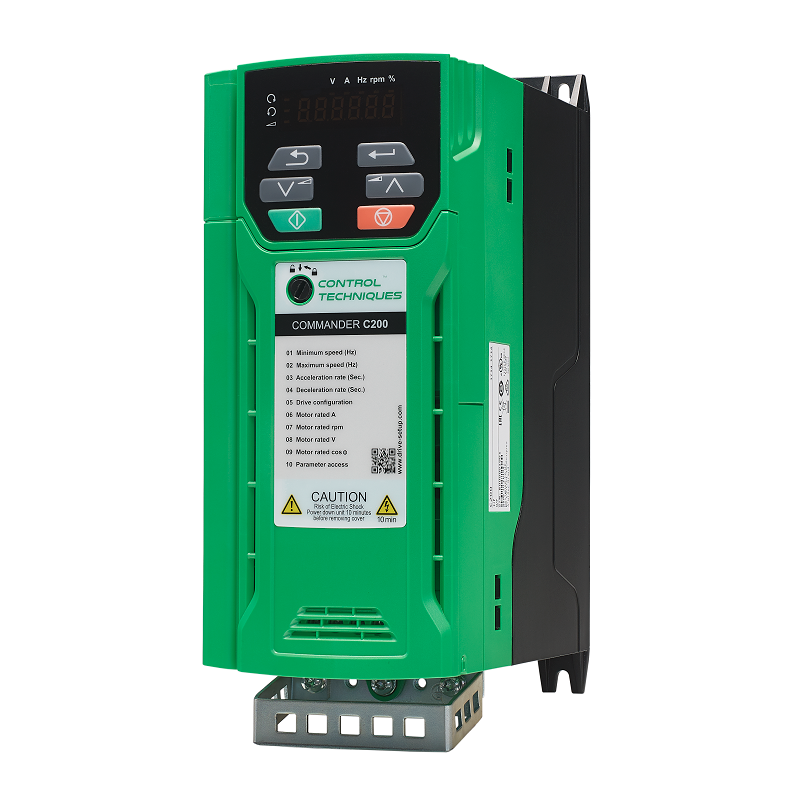

Control Techniques C200-02200033A | 0.55kW, Single/Three Phase, 200/240V AC, | Commander C | Variable Speed Drive
The Control Techniques C200-02200033A is a 0.55kW (0.75 hp) Commander C variable speed drive for 1/3 phase, 200-240V motors, rated for 3.3A continuous current in a compact IP21 housing. Genuine stock at General TechServices LLC, UAE, with free UAE-wide shipping.
Request a quote in under a minute - call +971 6 5436933.
Part No. C200-02200033A
Between a very light-duty pump and a full workshop drive line sits a class of motor that needs a little more headroom than the entry model but still no complexity. The C200-02200033A fills that gap: a 0.55 kW (0.75 hp) Commander C variable speed drive rated for 3.3A continuous current on a 1/3 phase, 200-240V AC supply, in the same 181 x 75 x 150 mm IP21 housing as the rest of the compact C200 line.
The drive fuses dependability with efficiency: dual Safe Torque Off (STO) safety, an integrated brake transistor, closed loop PID control and an onboard PLC for basic sequencing all come standard, so a single unit covers safety, process control and simple logic without extra panel hardware. Output frequency runs 0.5-590 Hz, giving smooth, precise speed control whether the load is a centrifugal pump, an extraction fan, or a light conveyor drive.
If your motor sits just under or just over this rating, Control Techniques keeps the same housing and feature set across the range: step down to the C200-02200024A 0.37kW or step up to the your panel layout.
Key Benefits
- C200-02200042A 0.75kW without changing
- Just 4 parameters to set for a fast, simple start-up
- Dual Safe Torque Off (STO) integrated safety function
- Onboard PLC and PID control for process applications, no extra hardware
- Integrated brake transistor for controlled deceleration
- Compact IP21 enclosure shared across the C200 power range for easy upsizing
- Free UAE-wide shipping on genuine, warrantied Control Techniques stock
Call +971 6 5436933 for pricing and stock availability
Who This Product Is Best For
- Light-duty pumps, fans and material-handling motors just above entry-level power
- Panel builders standardising on one compact drive housing across several motor sizes
- Retrofits where an older single-phase drive is being replaced with a modern compact unit
How to Specify & Commission It
- Check the C200-02200033A nameplate (0.55 kW, 200-240V, 1/3 phase, 3.3A) against your motor and supply.
- Mount the drive in a ventilated enclosure per the Control Techniques installation guide.
- Wire supply, motor and control terminals, then power up and set the 4 core start-up parameters.
- Commission against the connected motor, verify STO and protection settings before handover.
Frequently Asked Questions
How quickly can the C200-02200033A be commissioned?
Set just 4 parameters for a fast, simple start-up - Control Techniques' standard Commander C design goal.
What is the maximum continuous current rating?
3.3 A, matched to the 0.55 kW (0.75 hp) motor shaft power rating on a 200-240V, 1/3 phase supply.
Does it include safety functions?
Yes - dual Safe Torque Off (STO) is built in, along with an integrated brake transistor and PID control.
Is this drive suitable for single-phase supply?
Yes, it accepts either single or three-phase 200-240V input, offering flexibility where 3-phase power isn't available.
Should I choose the C200-02200033A or a different C200 rating?
Match your motor's nameplate current first. If your load is smaller, the 0.37kW C200-02200024A may suit better; if larger, the 0.75kW C200-02200042A steps up - contact our team to confirm.
Is genuine stock available with UAE shipping?
Yes, genuine Control Techniques stock ships free across the UAE. Call +971 6 5436933 for current pricing and lead time.
For pricing or to place an order, contact General Tech Services LLC. Call +971 6 5436933
