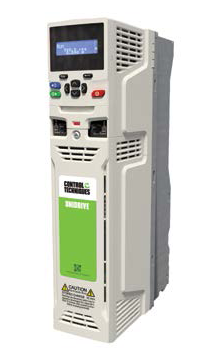

Control Techniques M600-10403200E Unidrive M600 Variable Speed Drive product photo

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Control Techniques M600-10403200E | Unidrive M600 Variable Speed Drive | 200 kW, 361 A, 3-Phase 380–480 V

Name: Control Techniques M600-10403200E | Unidrive M600 Variable Speed Drive | 200 kW, 361 A, 3-Phase 380–480 V
Brand: Control Techniques
SKU: M600-10403200E
Availability: OutOfStock

Part Number : M600-10403200E

The Control Techniques M600-10403200E is a 200 kW (300 hp) Unidrive M600 drive delivering 361 A continuously from a three-phase 380–480 V AC supply. It combines sensorless induction and permanent-magnet motor control with an onboard IEC 61131-3 PLC, so many heavy machines need no separate controller.

361 A maximum continuous output
High-bandwidth control with a 62.5 microsecond current loop
Overload of 200% for heavy-duty machinery
Up to three SI modules for safe motion, feedback, I/O, fieldbus or Ethernet
IP21 frame: 1069 x 310 x 288 mm, 46 kg (101.4 lb)

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	M600-10403200E
Brand	Control Techniques
Series	Unidrive M600
Motor Shaft Power	200 kW / 300 hp
Max Continuous Current	361 A
Supply	Three-phase, 380–480 V AC
Supply Frequency	45–66 Hz
Output Frequency Range	0–550 Hz
Enclosure	IP21
Dimensions	1069 x 310 x 288 mm (42.1 x 12.2 x 11.4 in)
Weight	46 kg (101.4 lb)
Motor Overload	200%
Current Loop Update	62.5 µs
Control Connections	3 AI, 4 DI, 2 AO, 3 digital I/O, 1 DO, 1 relay

High bandwidth motor control algorithm with 62.5µs current loop update rates for accurate motor control.
200% motor overload suitable for heavy industrial machinery applications.
Unidrive M600 incorporates an onboard PLC which can execute Machine Control Studio programs for logic control, sequencing, speed following and digital lock - removing the need for additional PLCs.
Complete IEC 61131-3 programming environment. Structured text (ST), function block (FBD), sequential function chart (SFC), ladder diagram (LD), instruction list (IL), and continuous function chart (CFC)
Fit up to three SI modules to add safe motion, speed feedback, additional I/O, fieldbus, and Ethernet communications.Control connections: 3 x Analog inputs, 4 x Digital inputs, 2 x Analog outputs, 3 x Digital I/O, 1 x Digital output, 1 x Relay
Advanced Rotor Flux Control (RFC) algorithm gives maximum stability and control of induction and permanent magnet motors.
1 hp – 4,200 hp (0.75 kW – 2.8 MW) NormalDuty
1.5 hp – 450 hp (1 kW – 2.8 MW) Heavy Duty 208 - 240 V | 380 - 480 V | 575 V | 690 V
Onboard communications : Modbus RTUvia dual RS485 ports
