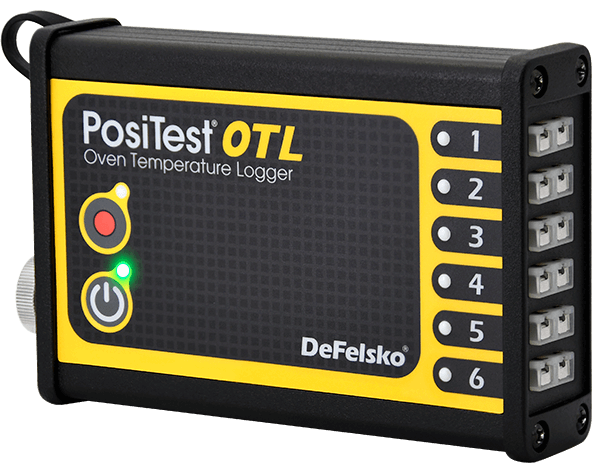

DeFelsko OTLLOGGER | PosiTest OTL Standalone Logger | Logger Only, 6 Channels
The DeFelsko OTLLOGGER is the PosiTest OTL temperature logger on its own, without Holder or barrier box. Without that thermal protection the logger itself is rated for 0 to 70 °C, so it suits users who already own a barrier box or need a replacement or spare logger. It records six K-type thermocouple channels for oven and cure profiling.
- Logger only – no Holder or barrier box
- Operating range without protection 0 to 70 °C
- Six K-type channels; thermocouple range -100 to 1000 °C
- 40,000 datasets (240,000 readings) in 6 batches
- Includes 2 AAA batteries, USB cable, PosiSoft Desktop and NIST traceable certificate
- Specifications
- Downloads
| Part Number | OTLLOGGER |
| Brand | DeFelsko |
| Kit | Logger only |
| Channels | 6 K-type non-grounded thermocouples |
| Measurement Range | -100 to 1000 °C |
| Logger Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| Memory | 40,000 datasets (240,000 readings), 6 batches |
| Sample Interval | 2 s fixed; max 22 h |
| Power | 2 AAA batteries |
| Logger Temperature (no barrier box) | 0 to 70 °C |
| Probes | Sold separately |
