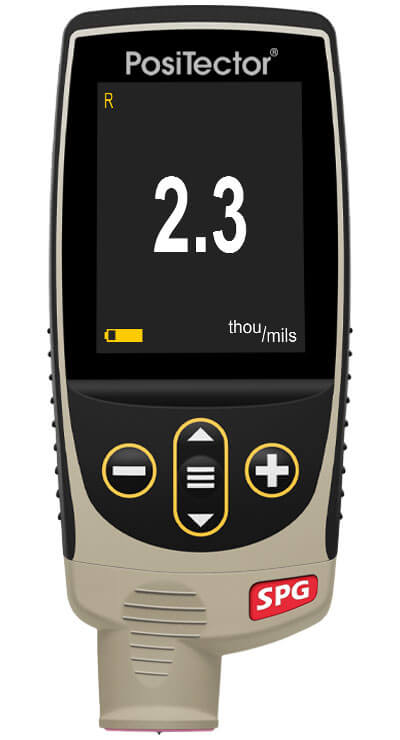

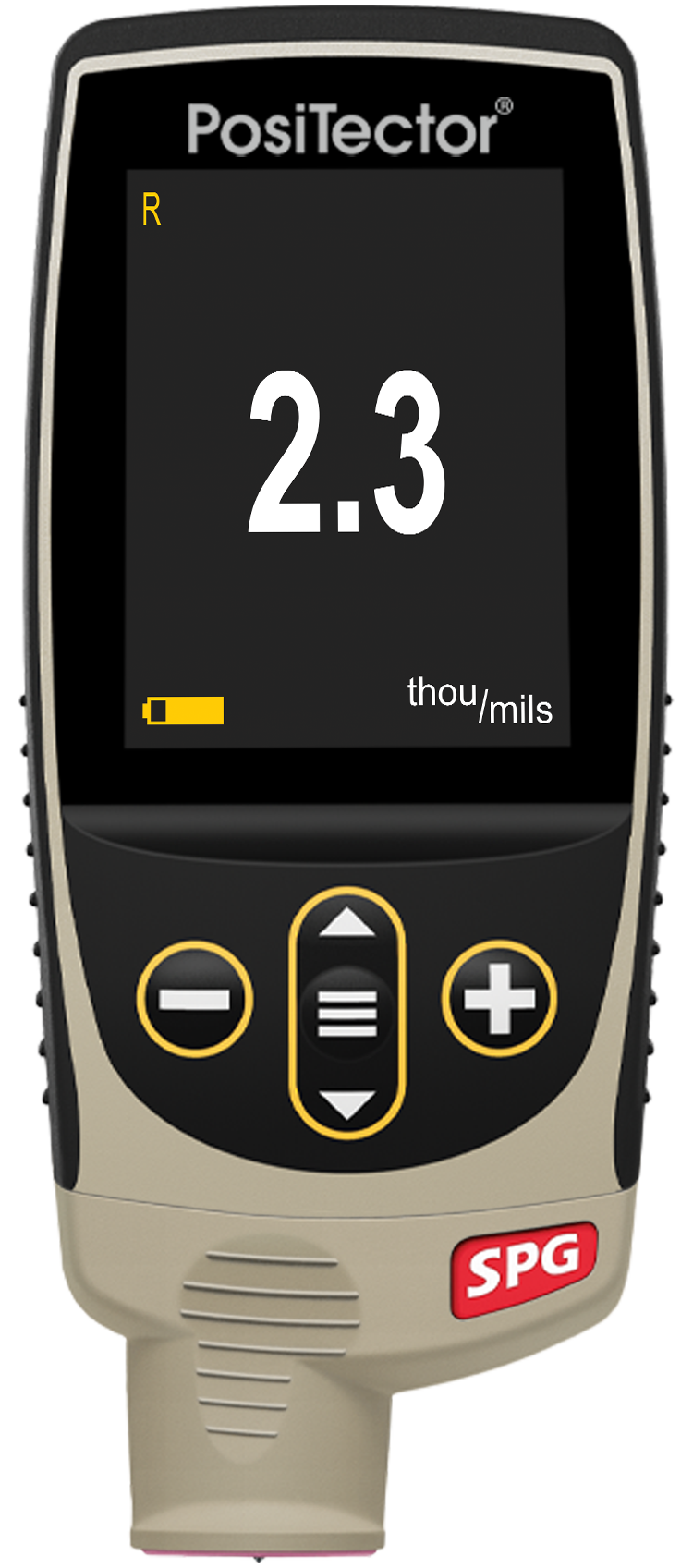

DeFelsko SPG1 | PosiTector SPG Surface Profile Gauge, Standard | Blasted Steel, 0 – 500 µm
Part Number : SPG1
The DeFelsko SPG1 combines the Standard PosiTector gage body with the integral PosiTector SPG probe, a digital depth micrometer for blasted steel. It measures peak-to-valley profile from 0 – 500 µm (0 – 20 mils) and is suited to checking blast profile on flat steel before coating. Blasting contractors and coating inspectors use it to confirm surface preparation before coating.
Key features
- Measuring range 0 – 500 µm (0 – 20 mils)
- Accuracy ±(5 µm + 5%)
- Tungsten carbide tip: 60°, 50 µm radius
- Over 50 readings per minute with built-in temperature compensation
- 30° tips available for AS 3894.5-C
- Standard gage body stores 1,000 readings per probe
For pricing, please contact our experts.
