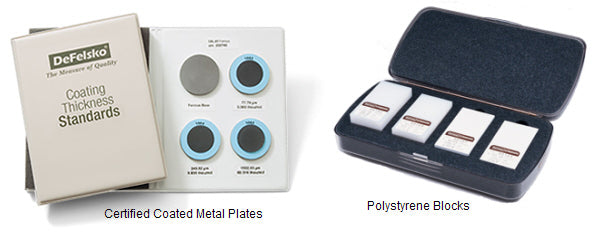

DeFelsko STDS4 | S4 Certified Coated Metal Plates | Steel, 0 to 1900 µm
Part Number : STDS4
For extended-range ferrous gauges, the DeFelsko STDS4 provides the S4 set of certified coated metal plates on steel, running from zero to 1900 µm (75 mils). DeFelsko lists it for PosiTector 6000 FXS probes; FXS probes with a 0 to 1500 µm range and serial numbers below 361485 should use the S1 set instead.
Key features
- Plate values (approx.): 0, 75 µm (3 mils), 1000 µm (40 mils) and 1900 µm (75 mils)
- Coating/substrate: epoxy on steel (ferrous)
- Accuracy: ±0.43 µm (±0.017 mil)
- Four plates in a protective binder; plate diameter 38 mm (1.5 in), measurement area 25 mm (1 in)
- Individually serialised with a Certificate of Calibration traceable to NIST or PTB
- Labelled in metric and imperial units
For pricing, please contact our experts.
