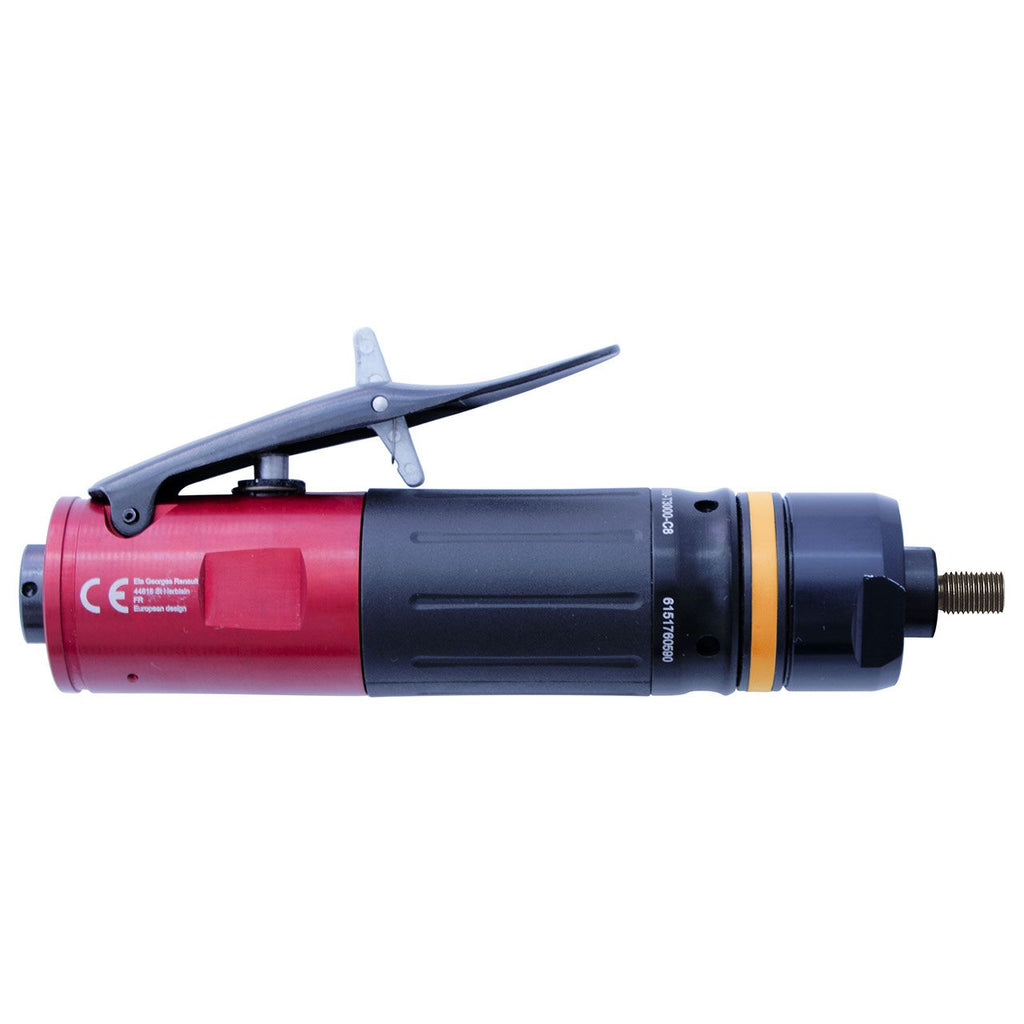

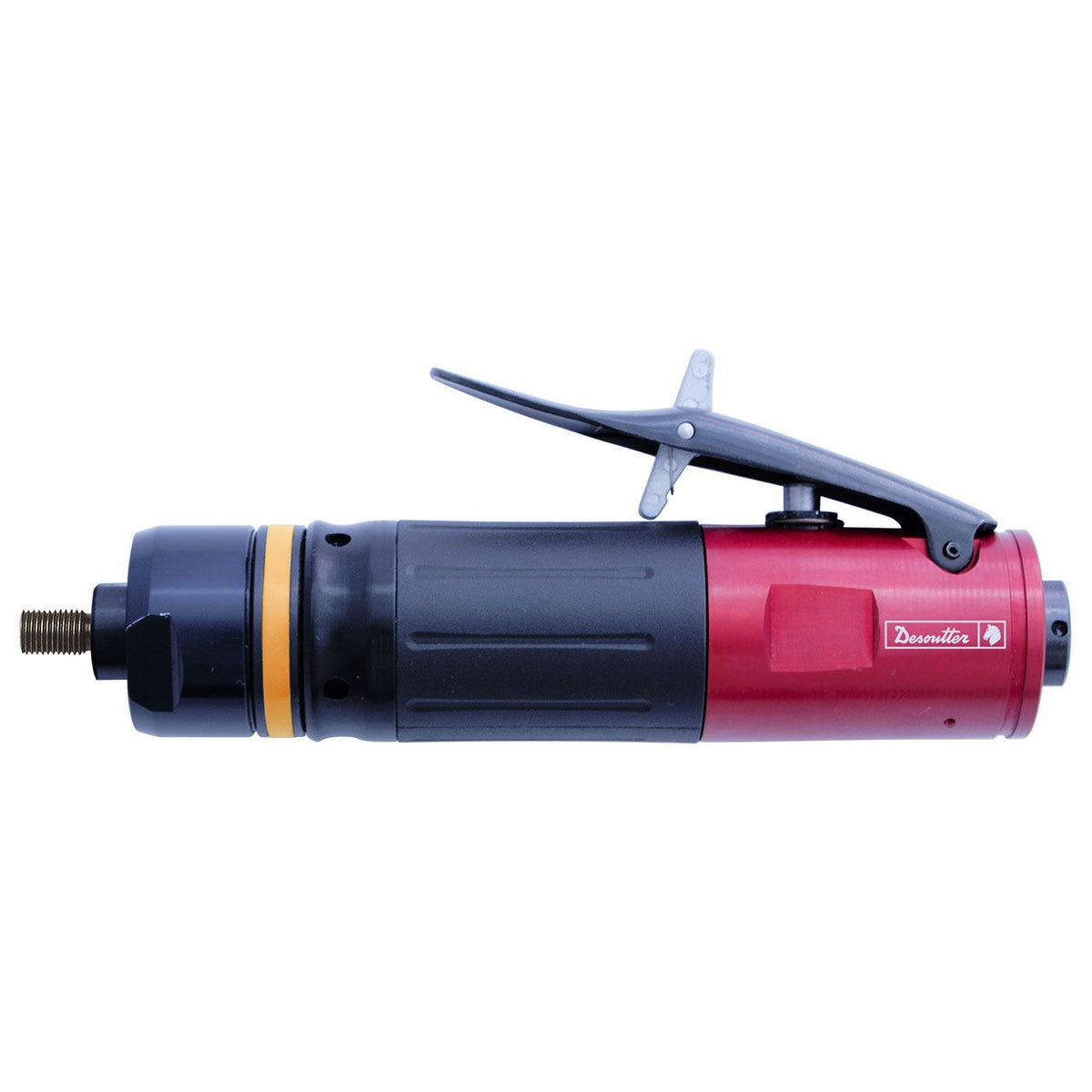

Desoutter DR300-T5500 | Pneumatic Straight Drill | 5500 rpm, 2.3 Nm
The Desoutter DR300-T5500 (part number 6151760620) is a pneumatic straight drill running at 5500 rpm free speed with 2.3 Nm (1.7 ft.lbf) stall torque. The inline DR300-T5500 is supplied without a chuck and has a 3/8-24 chuck mount output; it is 167 mm (6.57 in) long and weighs 0.49 kg (1.08 lb). The DR300 family, which includes the DR300-T5500, is intended for standard drilling applications with 300 W of power, low noise and low maintenance.
Key features
- Progressive trigger with safety lever start on the DR300-T5500
- DR300-T5500: 5 blade air motor with long-life gears to keep maintenance low
- Soft rubber grip over an aluminium and composite body (DR300-T5500)
- 9.5 l/s (20 cfm) air consumption at free speed through a 1/4 in inlet; minimum hose 6 mm for 5 m (DR300-T5500)
- Sound level 75 dba with vibration <2.5 m/s² as published for the DR300-T5500
- Specifications
- Downloads
| Part Number | 6151760620 |
| Model | DR300-T5500 |
| Brand | Desoutter |
| Tool type | Inline |
| Free Speed | 5500 rpm |
| Stall torque | 2.3 Nm (1.7 ft.lbf) |
| Output type | Output for chuck |
| Chuck type | No chuck |
| Chuck mount | 3/8-24 |

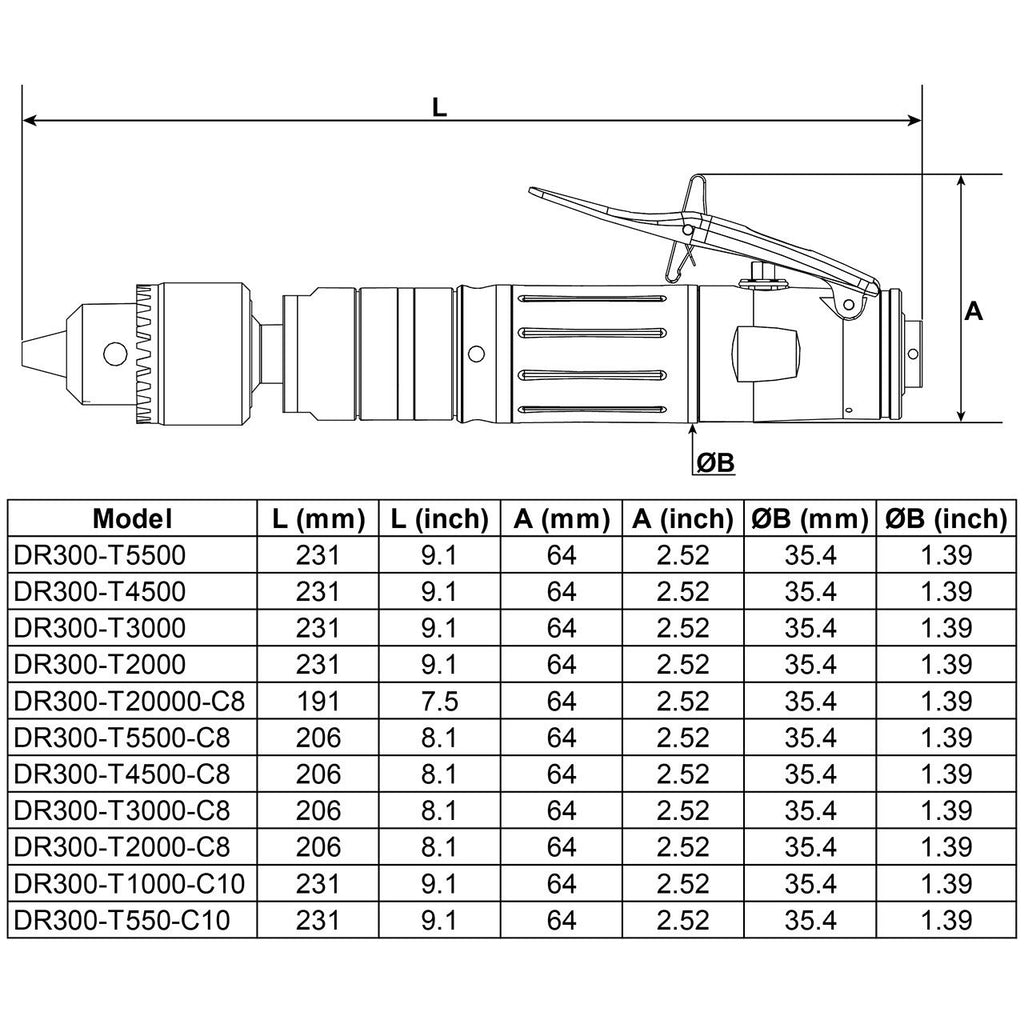

| Length (L) | 167 mm (6.57 in) |
| Weight | 0.49 kg (1.08 lb) |
| Air consumption at free speed | 9.5 l/s (20 cfm) |
| Starting system | Safety lever |
| Air inlet thread size (in) | 1/4 |
