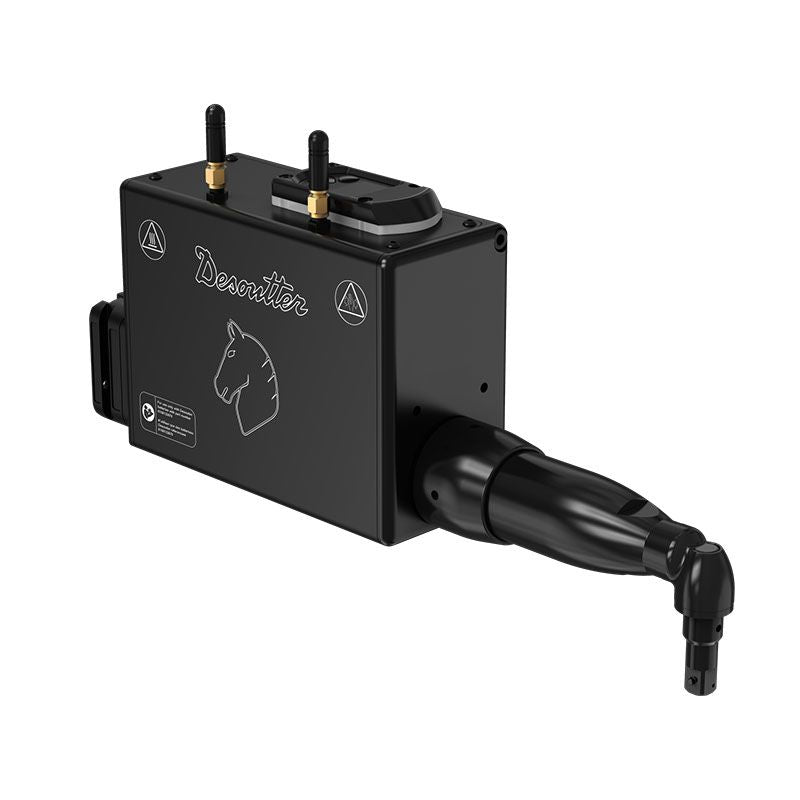

Desoutter EFBCA75-300-13S-ES | Angled Fast Integration Spindle | 75 Nm, 300 rpm, 1/2 in Sq
Part Number : 8920904547
Rated at 75 Nm maximum and 70 Nm recommended torque with 300 rpm free speed, the Desoutter EFBCA75-300-13S-ES (part 8920904547) is an angled fast integration spindle with a 1/2 in square drive. It weighs 5 kg (11 lb) and measures 419 mm (16.5 in) long, 113 mm (4.45 in) wide and 197 mm (7.76 in) high (EFBCA75-300-13S-ES). Like other fast integration spindles, the EFBCA75-300-13S-ES is meant for robot and cobot stations of any brand and uses battery tool technology to provide high tightening power.
Key features
- 75 Nm max torque, 300 rpm free speed and 1/2 in Sq output on the EFBCA75-300-13S-ES
- Reversible with shut-off transducer torque control (EFBCA75-300-13S-ES)
- EFBCA75-300-13S-ES receives continuous charging and safety signals through a thin cable that limits drag along the robot
- Quick installation and servicing of the EFBCA75-300-13S-ES through fast clamping
- Wi-Fi communication through a Connect-W brings the EFBCA75-300-13S-ES into the Desoutter ecosystem
For pricing, please contact our experts.
