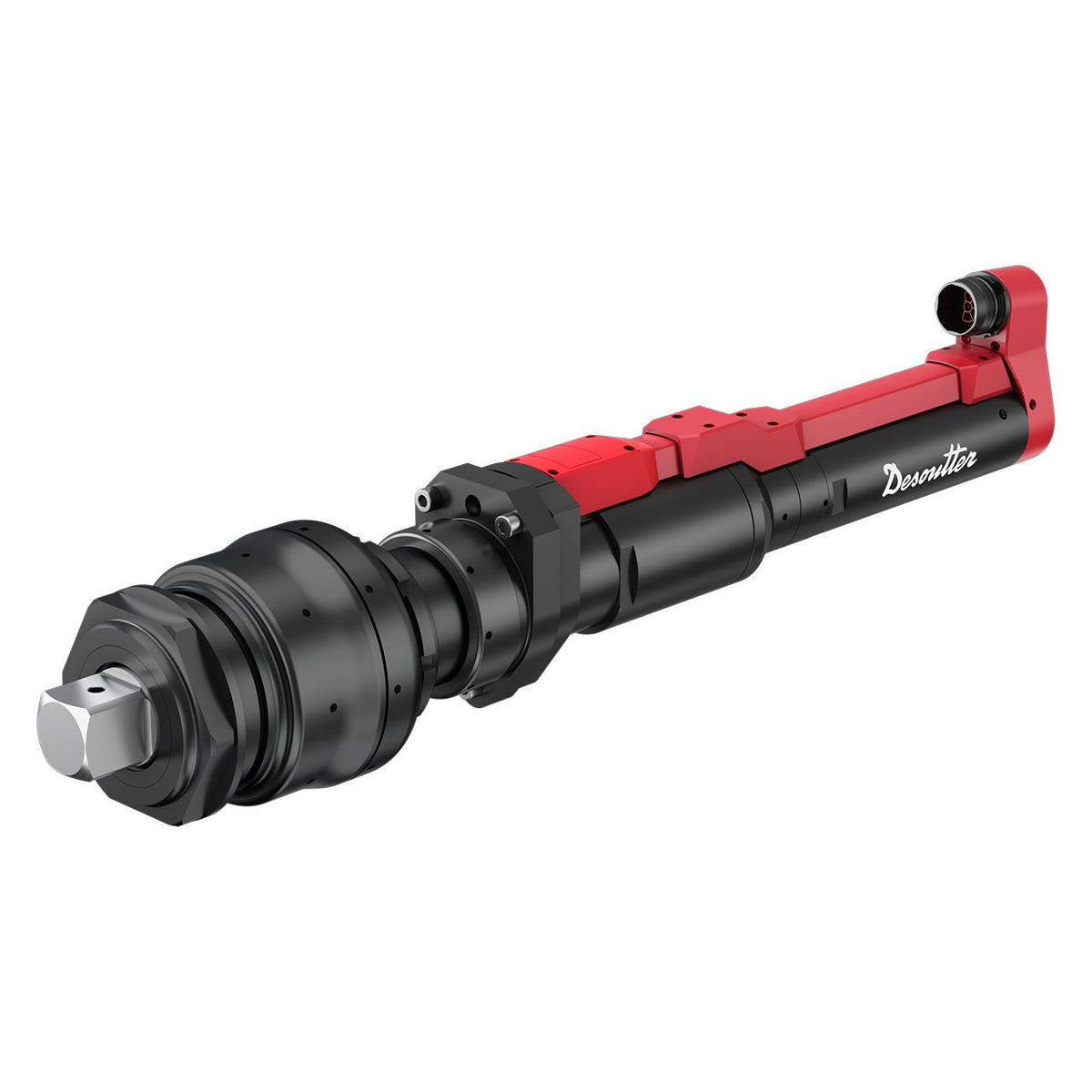

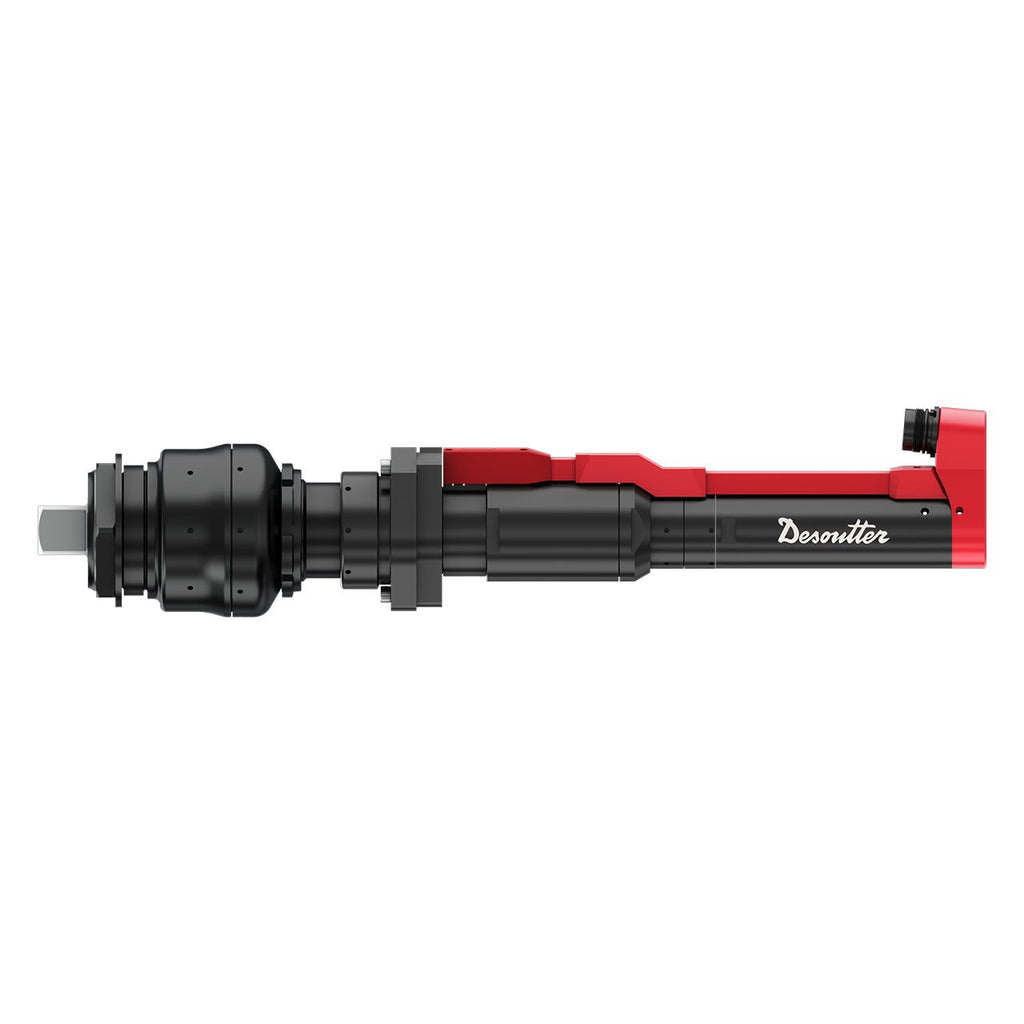

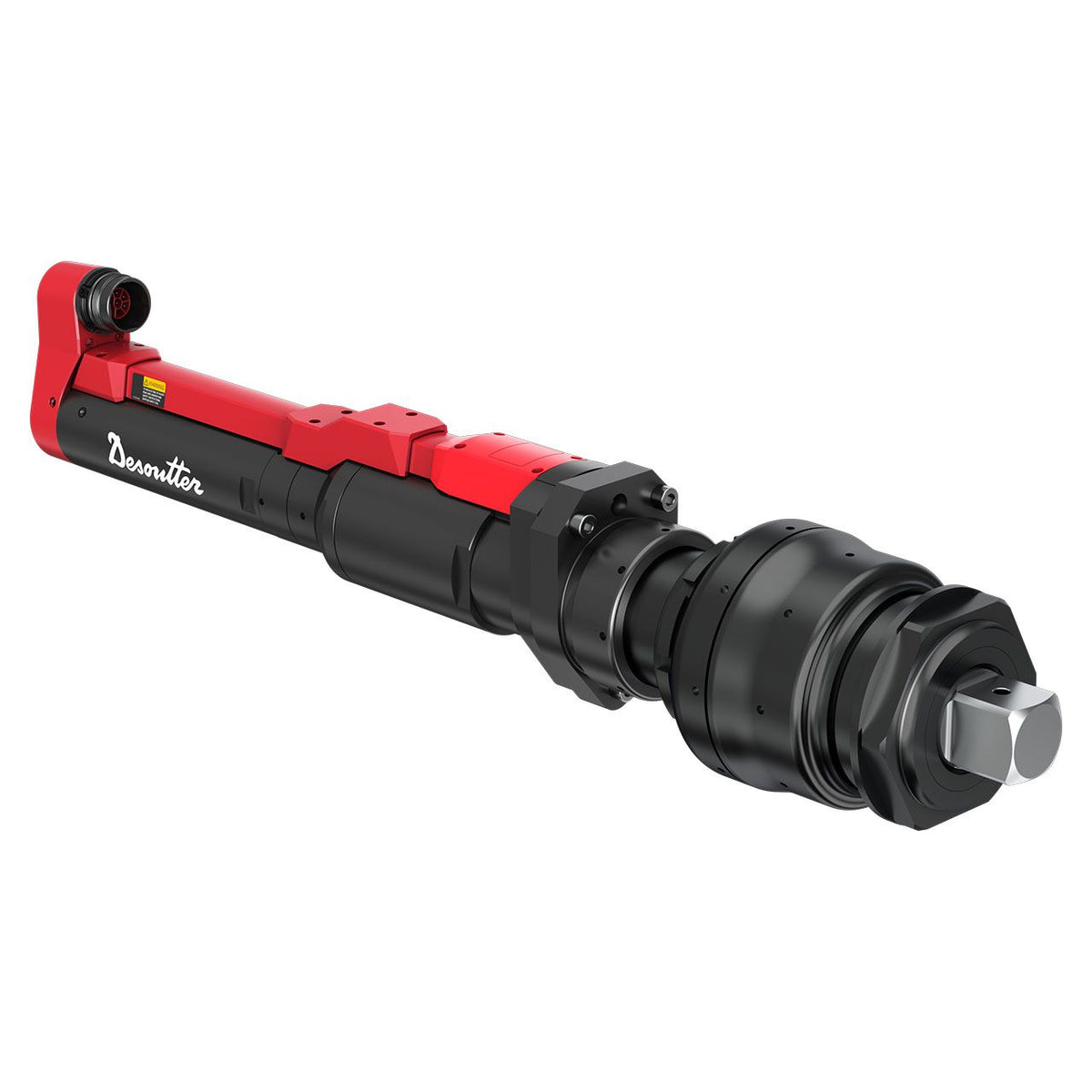

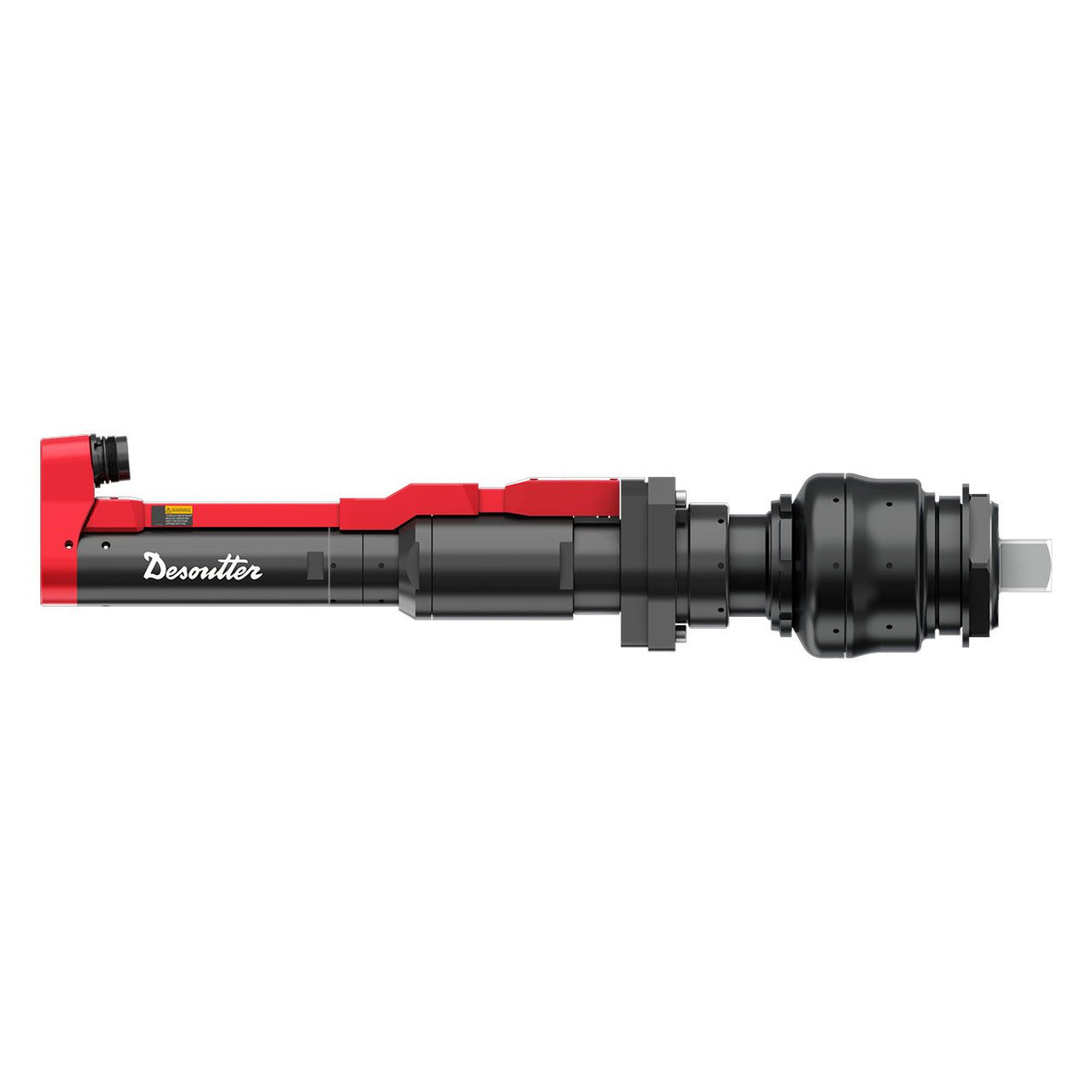

Desoutter EFD136-4000 | In-line Transducerized Fixtured Spindle | 430-4500 Nm, 13 rpm, 1-1/2 in Sq
Part Number : 8920903920
The Desoutter EFD136-4000 (part number 8920903920) is an in-line transducerized fixtured spindle delivering a forward torque range of 430 Nm (317 ft.lbf) to 4500 Nm (3320 ft.lbf) at a free speed of 13 rpm, through a 1-1/2 in square drive. Desoutter lists the EFD136-4000 with a recommended torque of 4000 Nm (2950 ft.lbf) and weight of 37.5 kg (82.6 lb). The EFD family serves fixtured stations with one spindle or several synchronised spindles and supplies full Industry 4.0 tightening data, which makes the EFD136-4000 a fit for automated machines.
Key features
- 430 Nm to 4500 Nm forward torque and 13 rpm free speed on the EFD136-4000
- 1-1/2 in square drive output, reversible, with shut-off transducer torque control (EFD136-4000)
- Torque transducer and angle sensor in the EFD136-4000 for accurate, repeatable tightenings
- EFD136-4000 is IP54 rated for demanding applications
- One EFD136-4000 covers multiple tightening strategies
For pricing, please contact our experts.
