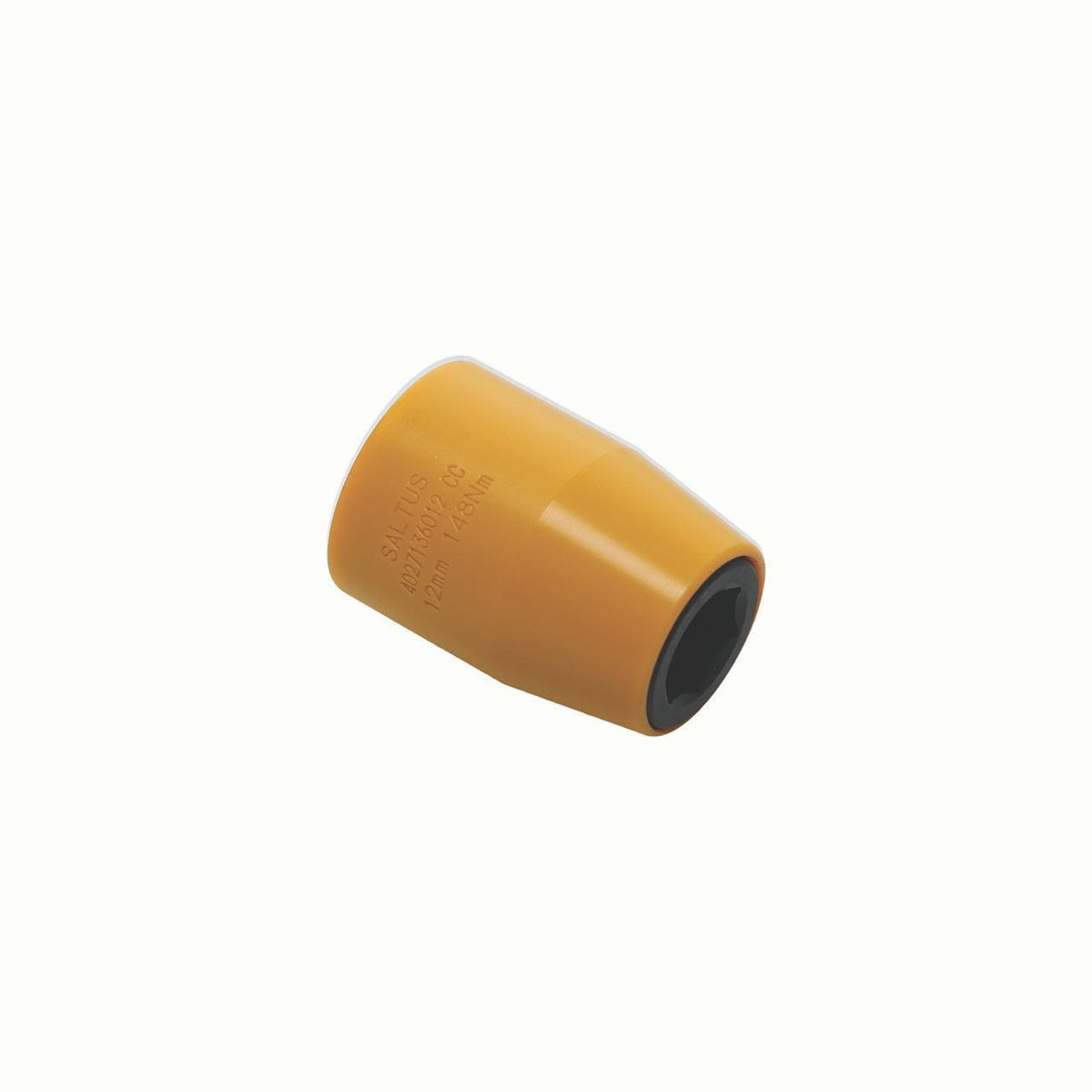

Desoutter Socket-SQ1/2-L38-HEX12-M-R | 1/2" Square Drive Rotaction Socket | 12 mm, Hexagon, 38 mm
The Desoutter Socket-SQ1/2-L38-HEX12-M-R (part number 4027136012) is a 1/2" Square Drive Rotaction Socket with input 1/2", output 12 mm and output type Hexagon. The Rotaction concept combines freely rotating sleeves and covers at tool-to-socket and extension-to-socket connections to improve operator safety.
Key features
- Input: 1/2"
- Output: 12 mm
- Output type: Hexagon
- Length L: 38 mm
- Freely rotating Rotaction sleeve concept
- Minimises risk of entanglement
- Specifications
- Downloads
| Part Number | 4027136012 |
| Model | Socket-SQ1/2-L38-HEX12-M-R |
| Brand | Desoutter |
| Input | 1/2" |
| Output | 12 mm |
| Output type | Hexagon |
| Length L | 38 mm |
| Max torque | 148 N*m |
| Output D | 22.5 mm |
| Input d | 28 mm |
| Profile depth T | 5.6 mm |
| Socket cover reference | C28 |
| Weight | 99 g |
| Features | Magnet||Rotaction |
