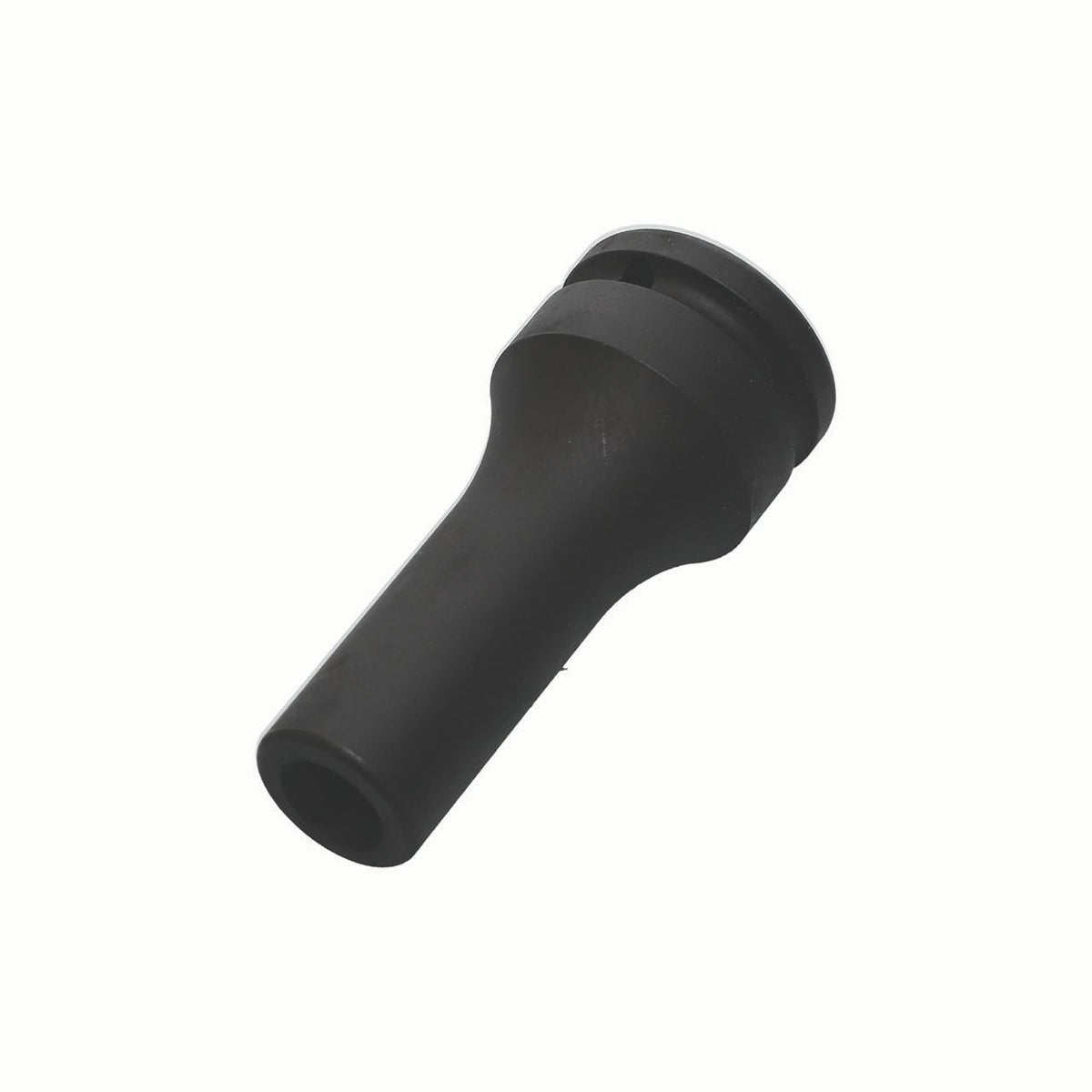

Desoutter Socket-SQ3/4-L100-E18 | 3/4" Square Drive Power Socket | E18, 100 mm
The Desoutter Socket-SQ3/4-L100-E18 (part number 4027152118) is a 3/4" Square Drive Power Socket with output E18, output type Torx and length l 100 mm. Each socket has a female square drive at the input end and an output profile sized to the fastener, as shown in the specification table.
Key features
- Output: E18
- Output type: Torx
- Length L: 100 mm
- Max torque: 327 N*m
- Part of a standard range of over 2,600 bits and sockets
- Custom-fit versions offered by the manufacturer for special needs
- Specifications
- Downloads
| Part Number | 4027152118 |
| Model | Socket-SQ3/4-L100-E18 |
| Brand | Desoutter |
| Output | E18 |
| Output type | Torx |
| Length L | 100 mm |
| Max torque | 327 N*m |
| Output D | 26.3 mm |
| Profile depth T | 13 mm |
| Input | 3/4" |
| Input d | 44 mm |
| Weight | 522 g |
