DMQ QCS334 | Straight V-Cut Non-Ferrous Probe | 0–1500 µm, Ø12 mm

Name: DMQ QCS334 | Straight V-Cut Non-Ferrous Probe | 0–1500 µm, Ø12 mm
Brand: Demeq
SKU: QCS334
Availability: OutOfStock

Part Number : QCS334

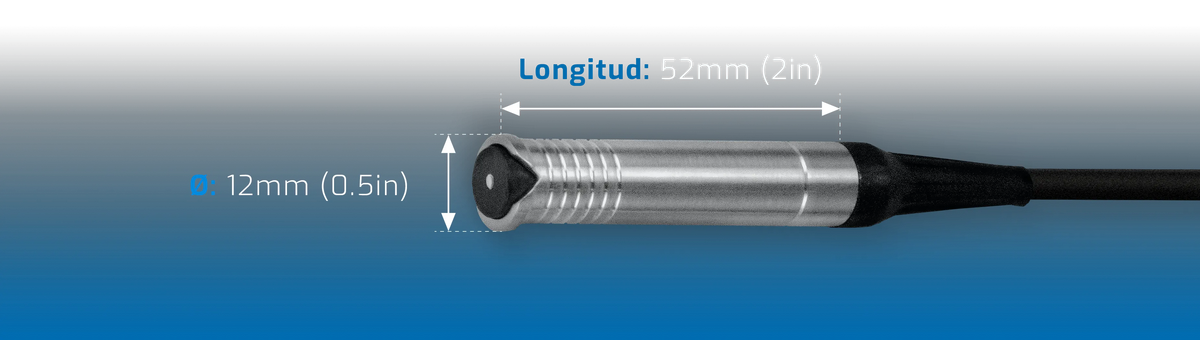

The DMQ QCS334 is a straight V-cut non-ferrous probe for DMQ coating thickness gauges, listed among the QC3 Series accessories. Its V-cut tip is designed for coatings on curved non-ferrous parts.

Measuring range: 0–1500 µm
Probe diameter: 12 mm
Curvature: Concave R min 45 mm / convex R min 2 mm
Listed for: QC3 Series

Availability: in stock

Specifications

Part Number	QCS334
Brand	DMQ
Type	Straight V-Cut Non-Ferrous Probe
Diameter	12 mm
Range	0–1500 µm
Curvature	Concave R min 45 mm / convex R min 2 mm
Listed for	QC3 Series
