Dwyer 102.5 | Inclined Portable Manometer | .20-0-2.0 in w.c., 8-3/4 in Scale

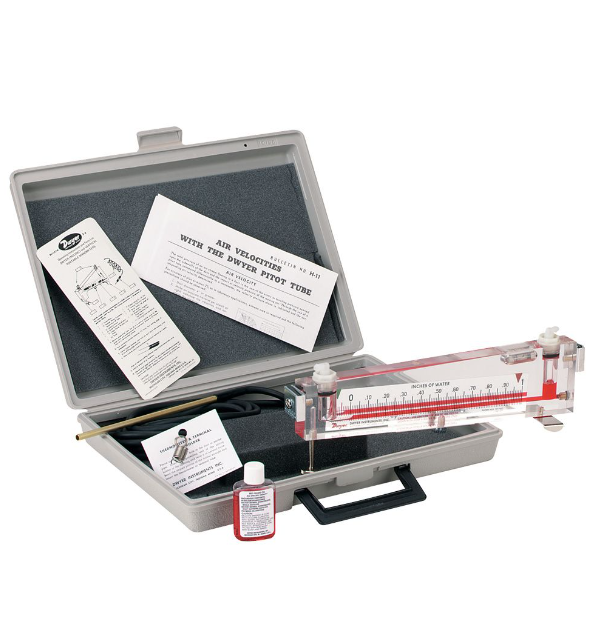

The Dwyer 102.5 covers .20-0-2.0 in w.c. on an 8-3/4 in inclined scale with .01 in minor divisions. This Series 100 Durablock solid plastic gage measures static pressure, vacuum or differential pressure and ships in a plastic carrying case.
- Range .20-0-2.0 in w.c., 2 in H2O maximum
- 8-3/4 in scale, .01 in minor divisions
- Inclined tube design in solid plastic
- Plastic carrying case; weight 5 lb
- Specifications
- Features
- Downloads
| Part Number | 102.5 |
| Brand | Dwyer |
| Series | 100 Durablock |
| Type | Inclined tube |
| Range | .20-0-2.0 in H2O |
| Weight | 5 lb |
| Minor Division | .01 in |
| Scale Length | 8-3/4 in |
| Carrying Case | Plastic |
- Portable solid plastic gauge with an 8-3/4" scale, a.01 minor division, and a range of.20-0-2.0" w.c. with a plastic carrying box.
- 1" Thick Acrylic Plastic The body is a single, nearly indestructible block that is stable and free from distortion risk.
- The precision of the drilled bore, which is accurate to ±.0002", is unaffected by bends or curves and doesn't need to be adjusted due to distortion.
- High wetability gauge oil is chosen to create a well-shaped, constant meniscus that is easy to read.
- Thumbscrew locking, reflective chrome finish scales that are adjustable for effortless zeroing
- To ensure optimal precision and consistency in parallax-free reading, just line the meniscus with its reflected image in the polished metal scale.
- Screw-Style Leveling Using an integrated sensitive ground glass bubble level as a reference, inclined type gauge adjustment offers quick and precise leveling.
- Fully equipped with extras and a carrying case made of plastic.
