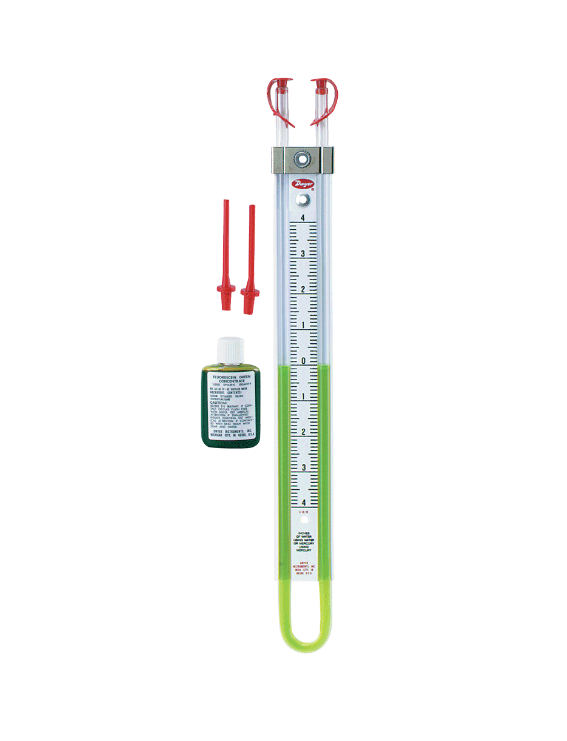

Dwyer 1222-M1000-W/M | Flex-Tube U-Tube Manometer | 500-0-500 mm w.c.
The Dwyer 1222-M1000-W/M is a Series 1222 Flex-Tube U-tube manometer with a 500-0-500 mm w.c. scale for positive, negative and differential pressure.
- 500-0-500 mm w.c. range on the 1222-M1000-W/M; maximum operating pressure 500 mm H2O
- The 1222-M1000-W/M combines a plain U-tube with durable plastic construction
- The 1222-M1000-W/M uses clear 0.375 in O.D. flexible butyrate tubing for its columns
- Tubes on the 1222-M1000-W/M are easy to reach for cleaning
- 1222-M1000-W/M scale is extruded high-impact polystyrene to hold column alignment
- High-contrast 1222-M1000-W/M scale: black graduations silkscreened on white
- Specifications
- Features
- Downloads
| Part Number | 1222-M1000-W/M |
| Brand | Dwyer |
| Series | 1222 Flex-Tube |
| Type | U-tube manometer |
| Range | 500-0-500 mm w.c. |
| Tubing | 0.375" O.D. butyrate |
| Scale Material | High-impact polystyrene |
| Maximum Operating Pressure | 500 mm H2O |
| Measurement | Differential |
- Manometer, Flex-Tube U-Tube, Range: 500-0-500 mm w.c.
- Simplest and least expensive basic U-gage.
- A trustworthy U-tube manometer that delivers precise, highly visible readings even under harsh conditions.
- To be used with red gage fluid, mercury, or water.
- Dwyer® Part No. A-363, a scale clamp bar (standard on Series 1222 and available as an additional for Series 1221), is advised for mercury-filled manometers.
- Each manometer comes with a set of vinyl tube connectors that don't kink and a pair of carrying plugs.
