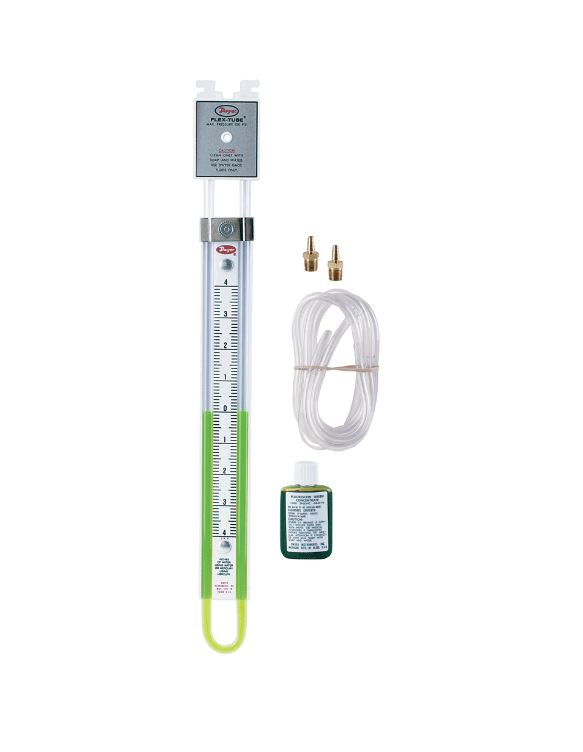

Dwyer 1223-8-D | Flex-Tube U-Tube Manometer | 4-0-4" w.c.
Built on the plain U-tube principle, the Dwyer 1223-8-D from Series 1223 covers 4-0-4 in w.c. for positive, negative and differential pressure.
- 4-0-4 in w.c. range on the 1223-8-D; maximum operating pressure 4 in H2O
- 1223-8-D pairs all-plastic construction with plain U-tube precision
- Shatter-proof 0.375 in O.D. butyrate tubing forms the 1223-8-D columns
- Cleaning the 1223-8-D is simple as the columns are accessible
- Column alignment on the 1223-8-D is held by an extruded polystyrene scale
- Black silkscreened graduations on a white scale, with a white channel behind the 1223-8-D indicating tube
- Specifications
- Features
- Downloads
| Part Number | 1223-8-D |
| Brand | Dwyer |
| Series | 1223 Flex-Tube |
| Type | U-tube manometer |
| Range | 4-0-4" w.c. |
| Tubing | 0.375" O.D. butyrate |
| Scale Material | High-impact polystyrene |
| Maximum Operating Pressure | 4 in H2O |
| Measuring Units | inch H2O |
| Measurement | Differential |
- Our best U-gage, suitable for both stationary and portable applications.
- Safety traps guard against unintentional over-pressurization and the loss of indicating fluid.
- A molded, high impact acrylic plastic lid with safety traps is firmly glued to the tubing.
- There is a clamp bar and large magnetic clips available.
- Two 3' lengths of flexible Tygon® plastic tubing, two quick shut-off type molded nylon tubing couplings, and two 1/8" pipe thread to tube adapters are examples of standard type "a" connections.
- Static pressure in ducts.
- Laboratories for calibration.
- Monitoring of filters.
