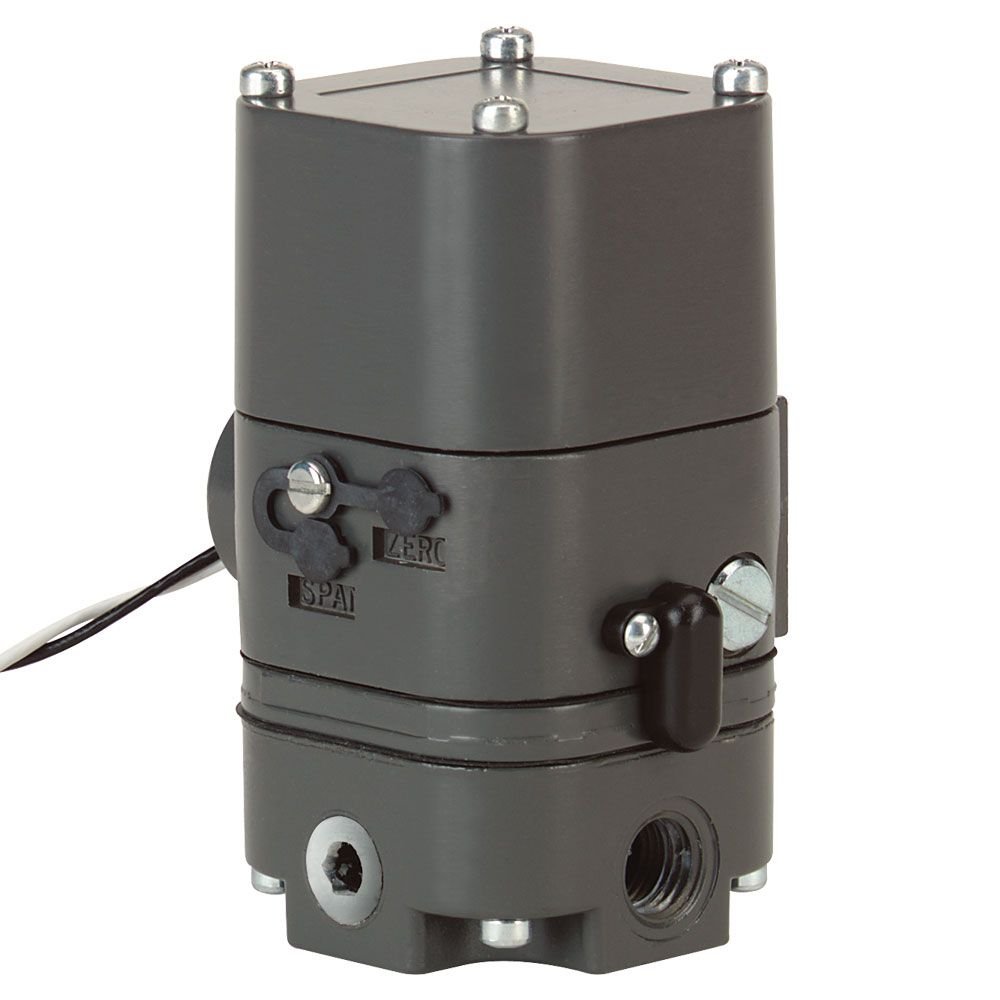

Dwyer Instruments 2916-E | Current to pressure transducer | 4-20 mA input | 6-30 psig (0.4-2.1 bar) output
The Dwyer Instruments 2916-E is a Series 2900 current-to-pressure (I/P) transducer designed for demanding hazardous-location applications. It converts a 4-20 mA input signal into a 6-30 psig (0.4-2.1 bar) pneumatic output and features a weatherproof NEMA 4X (IP66) housing with FM and CSA approvals for explosion-proof and intrinsically safe operation.
Genuine Control Techniques stock · Free UAE-wide shipping
Part Number: 2916-E
Request a quote in under a minute — call +971 6 5436933.
Product Overview
The Dwyer 2916-E I/P transducer is designed for applications where reliable current-to-pressure conversion is required in demanding and hazardous environments. Its Series 2900 construction combines precise output control with a rugged enclosure designed for hazardous-location installations.
The transducer converts a variable 4-20 mA current signal into a proportional 6-30 psig (0.4-2.1 bar) pneumatic output. Advanced electronic feedback control helps maintain precise output while providing excellent resistance to the effects of vibration and mounting position.
The 2916-E is suitable for field mounting on valves, where vibration and installation orientation can affect conventional transducers. Its compact construction also simplifies installation and setup.
The unit provides 4.5 scfm output capacity at 25 psig supply and up to 12.0 scfm at 100 psig supply. The required air supply is at least 5 psig above the maximum output, with a maximum supply pressure of 100 psig (6.9 bar).
For convenient installation, input and output ports are provided on both the front and rear. The electrical connection is 1/2" female NPT, while the pressure connection is 1/4" female NPT.
Field calibration is straightforward using the readily accessible zero and span adjustments. The transducer provides ±0.1% of span accuracy, ±0.1% hysteresis and ±0.1% repeatability, with a specified deadband of 0.02% of span.
Key Benefits
- Converts 4-20 mA signals to 6-30 psig (0.4-2.1 bar) pneumatic output
- Designed for demanding hazardous-location applications
- Explosion-proof and intrinsically safe design
- FM and CSA approved
- Weatherproof NEMA 4X (IP66) enclosure
- Electronic feedback control for precise output and vibration resistance
- Not sensitive to mounting position, supporting valve field mounting
- Front and rear input/output ports for installation flexibility
- Accessible zero and span adjustments for field calibration
- Compact design for easier installation and setup
- Free UAE-wide shipping on genuine Dwyer stock
Who This Product Is Best For
The Dwyer 2916-E is suited for hazardous (classified) locations requiring explosion-proof and intrinsically safe I/P signal conversion.
It is particularly useful for industrial process applications where a 4-20 mA control signal needs to be converted into a 6-30 psig pneumatic signal, including valve-mounted installations where vibration resistance and mounting-position insensitivity are important.
Its precise output performance also makes it suitable for applications requiring accurate pneumatic control in demanding environments.
How to Specify & Commission It
- Confirm that the 6-30 psig (0.4-2.1 bar) output range matches the requirements of the final control element.
- Connect the 4-20 mA loop-powered input using the 1/2" female NPT electrical connection.
- Connect the air supply and pneumatic output through the 1/4" female NPT pressure connection.
- Ensure the supply pressure is at least 5 psig above the maximum output and does not exceed 100 psig.
- Use the accessible zero and span adjustments to complete field calibration.
Frequently Asked Questions
What does the Dwyer 2916-E do?
The 2916-E converts a 4-20 mA current signal into a proportional 6-30 psig (0.4-2.1 bar) pneumatic output pressure.
Is the Dwyer 2916-E explosion-proof?
Yes. The 2916-E has a weatherproof NEMA 4X (IP66) enclosure and is approved by FM and CSA for explosion-proof and intrinsically safe operation.
What is the output range of the 2916-E?
The transducer provides a 6-30 psig (0.4-2.1 bar) pneumatic output.
What connections does the 2916-E use?
It uses a 1/2" female NPT electrical connection and a 1/4" female NPT pressure connection.
Is the 2916-E loop powered?
Yes. The unit uses a 4-20 mA loop-powered input.
What makes the 2916-E suitable for valve field mounting?
Its electronic feedback control provides resistance to vibration, and the transducer is not sensitive to mounting position, making it suitable for field mounting on valves.
How precise is the 2916-E?
The specified accuracy, hysteresis and repeatability are each ±0.1% of span, with a 0.02% of span deadband.
Can the 2916-E be calibrated in the field?
Yes. The unit has readily accessible zero and span adjustments for field calibration.
What is the operating temperature range?
The specified operating temperature range is -40 to 160°F (-40 to 71°C). The storage temperature range is -40 to 200°F (-40 to 93°C).
What is the difference between the 2916-E and 2913-E?
Both models use the same Series 2900 explosion-proof and intrinsically safe design. The 2916-E provides a 6-30 psig (0.4-2.1 bar) output, while the 2913-E provides a 3-15 psig (0.2-1.0 bar) output.
Is genuine stock available with UAE shipping?
Yes. Genuine Dwyer stock with free UAE-wide shipping is available through General Tech Services LLC. Call +971 6 5436933 for pricing and current availability.
