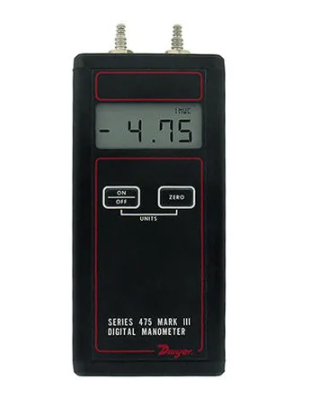

Dwyer 475-0-FM | Handheld Digital Manometer | 0.36 psi
The Dwyer 475-0-FM is a Series 475 Mark III handheld digital manometer listed at 0.36 psi, for field calibration and troubleshooting of HVAC, clean room and other low-pressure pneumatic systems.
- Range 0.36 psi
- Two barbed connections for 1/8" or 3/16" ID tubing
- Accuracy ±0.5% FS at 60-78 °F, hysteresis ±0.1% FS (0.36 psi model)
- Works as an air velocity gage with a Dwyer Pitot tube
- CE and FM approvals
- Specifications
- Features
- Downloads
| Part Number | 475-0-FM |
| Brand | Dwyer |
| Series | 475 Mark III |
| Type | Handheld Digital Manometer |
| Range | 0.36 psi |
| Accuracy | ±0.5% FS at 60-78 °F; ±1.5% FS at 32-60 °F and 78-104 °F |
| Weight | 10.8 oz (306 g) |
| Power | 9 V alkaline battery |
| Operating Temperature | 0 to 140 °F (-17.8 to 60 °C) |
| Approvals | CE, FM |
| Hysteresis | ±0.1% FS |
| Connections | Two barbed, for 1/8" or 3/16" ID tubing |
| Compensated Temperature | 32 to 104 °F (0 to 40 °C) |
- Checking the pressure of natural gas in boilers and other combustion machinery.
- Using an AV calculator and a Dwyer Pitot tube, air velocity monitoring.
- Calibration of other instruments in the field.
- Keeping an eye on or debugging HVAC systems.
