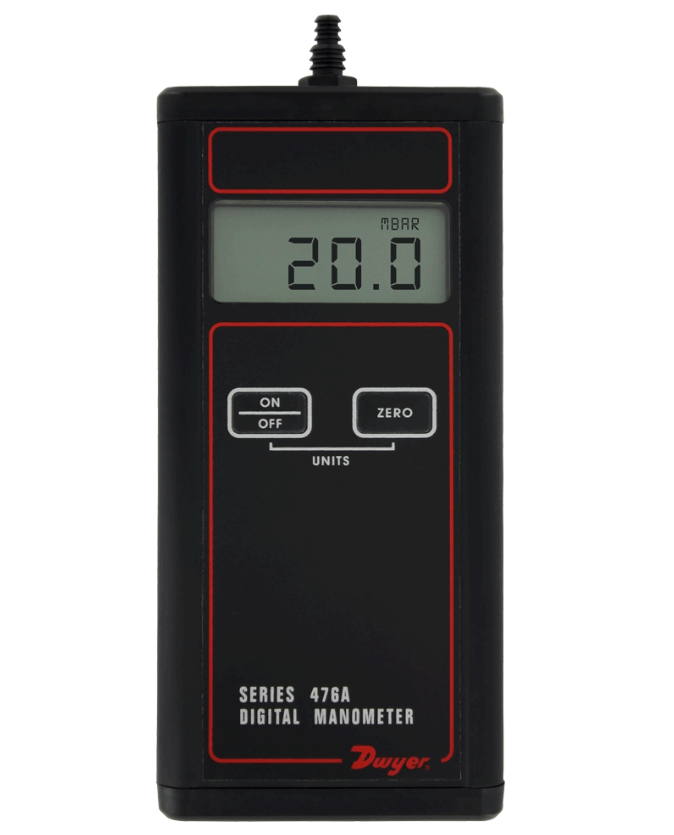

      Dwyer Instruments 476A-0 | Digital manometer | Range -20 to 20" w.c.
With an accuracy of ±1.5% FS, the Dwyer 476A-0 single-pressure digital manometer can measure low pressures between -20 and 20 in water column. It provides a quick selection option for up to nine English or metric units and a one-button auto-zero feature. The 476A is made to last because to its durable aluminum casing and auto power-off feature, which extends battery life.
- Specifications
 - Features
 - Downloads

| Accuracy | +/-1.5% FS @ 72°F (22.2°C). Includes linearity and repeatability |
| Approvals | CE |
| Connection | Process: For use with 3/16" or 1/4" I.D. tubing |
| Display | 4 digit LCD (.425"H x .234"W digits) |
| Material | Wetted: Consult factory |
| Maximum Operating Pressure | 5 psig (.74 bar) |
| Maximum operating temperature | 0 to 140°F (-17.8 to 60°C) |
| Power | 9 V alkaline battery, installed non-functional, user replaceable |
| PRESSURE | Hysteresis: +/-0.1% of FS |
| Range | -20 to 20" w.c. |
| Temperature | Compensated Temperature Limits: 32 to 104°F (0 to 40°C) |
| Thermal Effect | 0.05% FS/°F |
| Weight | 10.8 oz (306 g) |
- Accuracy at full scale ±0.5%.
 - Durable aluminum extrusion housing.
 - Auto-zero function with one button.
 - Automatic shut-off feature to prolong battery life.
 - Select up to nine English/metric units instantly.
