Dwyer 477-0T-AV | Air Velocity Manometer Kit | 0-10" w.c., 36" Pitot Tube

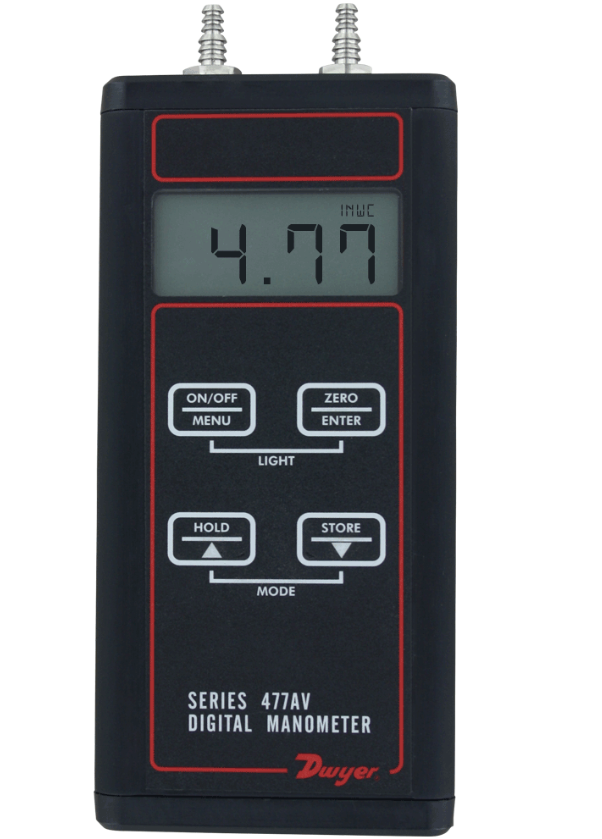

The Dwyer 477-0T-AV kit combines a Model 477AV-0 handheld digital manometer (0-10 in w.c.), a Model 166T 36" telescoping Pitot tube and a carrying case for air velocity work. The 477AV-0 supplied in the kit stores 40 readings and offers English/metric pressure, flow and velocity units.
- 40-reading memory
- Pressure, flow and velocity units in English or metric
- Overpressure alerts both on screen and by sound
- Low-battery indication
- ±0.5% accuracy; 0.4" backlit display
- Specifications
- Features
- Downloads
| Part Number | 477-0T-AV |
| Brand | Dwyer |
| Range | 0-10" w.c. |
| Kit Contents | Model 477AV-0 manometer, Model 166T 36" telescoping Pitot tube, carrying case |
| Accuracy | ±0.5% |
| Display | 0.4" backlit LCD |
| Memory | Up to 40 readings |
| Units | English/metric pressure, flow and velocity |
| Alarms | Visual and audible overpressure; low battery |
| Power | 9 V alkaline battery |
- Complete package for industrial and HVAC uses.
- Robust design for enduring durability.
- Simple conversion of air velocity to pressure.
- Assemble with pride in the USA.
