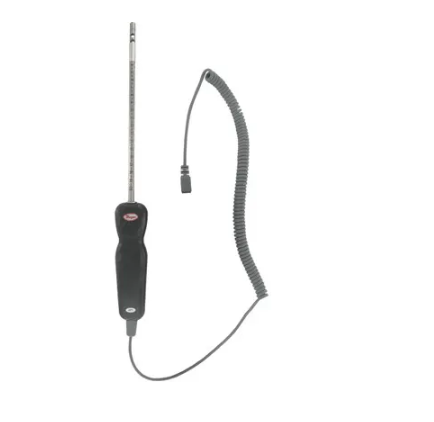

Dwyer Instruments AP1-36 Probe | Thermo Anemometer Air Velocity & Temperature Probe w/Coiled Cable | 36 IN
The Dwyer AP1-36 Thermo-Anemometer Probe is a dependable and precise instrument for temperature and air velocity measurements. Its temperature range is broad and its readings are accurate to within ±0.5°F for temperature and ±3% FS for air velocity. This probe's 1-second response time and 45–6000 FPM air velocity range make it ideal for a wide range of applications. It has an 8? insertion length and functions best in dry, clean air.
- Specifications
- Features
- Downloads
| Accuracy | Air Velocity: +/-3% FS within temperature range of 40 to 90°F (4 to 32°C); Temperature: +/-0.5°F (+/-0.28°C) |
| Approvals | CE |
| Probe Depth | 8‹� (203 mm) insertion (see model chart for additional probe lengths) |
| Range | Air velocity: 45 to 6000 FPM (0.23 to 30 m/s); Volumetric air: 19,999 in selected flow units; Temperature: -40 to 212°F (-40 to 100°C) |
| Series | AP1 Series |
| Temperature | Limits: Process air velocity: -20 to 212°F (-29 to 100°C); Process temperature: -40 to 212°F (-40 to 100°C); Ambient: 5 to 125°F (-15 to 51°C) |
| Type | Probe |
| Weight | 12.8 oz (362 g) |
- Determines the temperature and air velocity.
- In conjunction with the Dwyer® 473B-1 Thermo-Anemometer.
- Simple markings on the probe show the length of the insertion.
