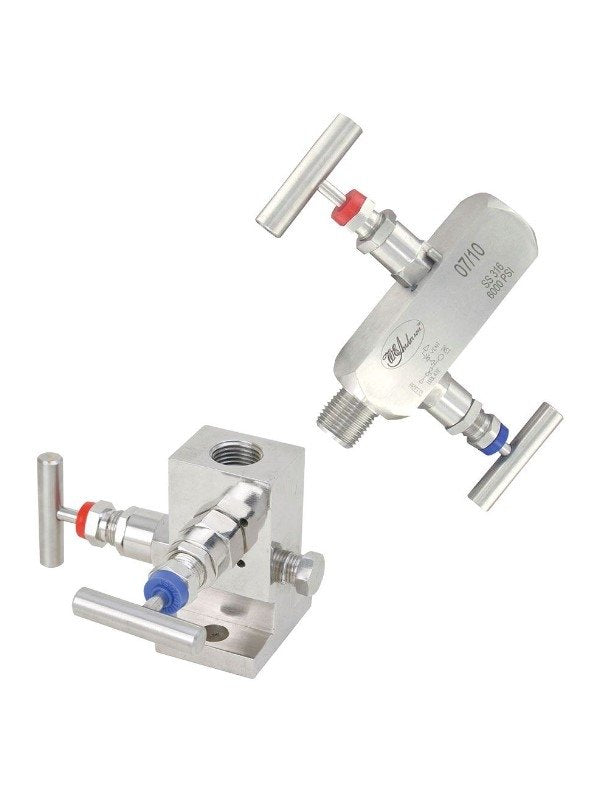

Dwyer BBV-0N | 2-Valve Block Manifold | 316 SS, 6000 psi (400 bar)
Built from 316 stainless steel bar stock, the Dwyer BBV-0N is a 2-valve block manifold with one isolate valve and one vent valve. Suitable media include oil, water, hazardous liquids, chemicals, air and steam; ratings are 6000 psi (400 bar) and 240°C, with uses in petrochemical processing, nuclear power and refining.
- One isolate valve and one vent valve (BBV-0N)
- Process connection 1/2" male NPT; instrument connection 1/2" female NPT
- 1/4" female NPT vent/test port; 304 SS handle on the BBV-0N
- Hard seats machined into each valve stem to lower operating torque (BBV-0N)
- PTFE stem packing; 316 SS stem and valve assembly (BBV-0N)
- Made for direct mounting of industrial pressure transmitters (BBV-0N)
- Specifications
- Features
- Downloads
| Part Number | BBV-0N |
| Brand | Dwyer |
| Type | 2-Valve Block Manifold |
| Body Material | 316 SS bar stock |
| Valves | One isolate valve and one vent valve |
| Wetted Materials | Body, stem, valve assembly 316 SS; stem packing PTFE |
| Handle | 304 SS |
| Maximum Operating Pressure | 6000 psi (400 bar) |
| Maximum Temperature | 240 °C (464 °F) |
| Process Connection | 1/2" male NPT |
| Instrument Connection | 1/2" female NPT |
| Vent/Test Connection | 1/4" female NPT |
- Maximum pressure of 6000 psi.
- 316 SS valve assembly, stem, and body.
- Stem packing made of PTFE.
