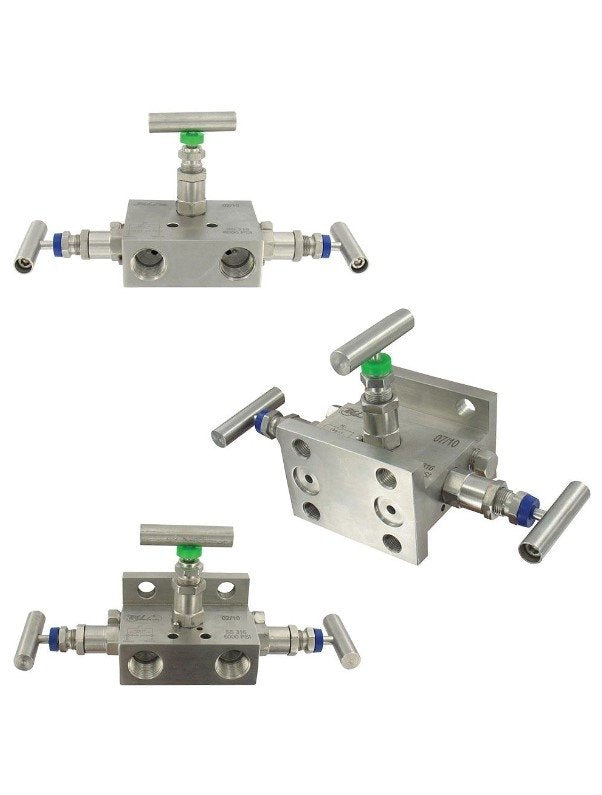

Dwyer BBV-1F | Flanged 3-Valve Block Manifold | 316 SS, 6000 psi (400 bar)

Name: Dwyer BBV-1F | Flanged 3-Valve Block Manifold | 316 SS, 6000 psi (400 bar)
Brand: Dwyer
SKU: BBV-1F
Availability: OutOfStock

Part Number : BBV-1F

Made from 316 SS bar stock, Dwyer's BBV-1F flanged 3-valve block manifold provides two isolation valves and one equalizing valve. Pressure and temperature limits are 6000 psi (400 bar) and 240°C, and it is suited to water, oil, chemicals, air and steam in refineries, petrochemical and nuclear plants.

Two isolation valves and one equalizing valve (BBV-1F)
Process connection 1/2" female NPT (no flange) or DIN 19213 flange on the flanged 3-valve block manifold
1/4" female NPT vent/test port; 304 SS handle on the BBV-1F
Hard seats machined into each valve stem to lower operating torque (BBV-1F)
PTFE stem packing; 316 SS stem and valve assembly (BBV-1F)

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	BBV-1F
Brand	Dwyer
Type	Flanged 3-Valve Block Manifold
Valves	Two isolation valves and one equalizing valve
Body Material	316 SS bar stock
Wetted Materials	Body, stem, valve assembly 316 SS; stem packing PTFE
Handle	304 SS
Maximum Operating Pressure	6000 psi (400 bar)
Maximum Temperature	240°C (464°F)
Process Connection	1/2" female NPT (no flange) or DIN 19213 flange
Instrument Connection	1/2" female NPT (no flange) or DIN 19213 flange
Vent/Test Connection	1/4" female NPT

The Series BBV-1 Block Manifold is suitable for a wide range of industrial applications, including oil refineries, nuclear power stations, petrochemical processing, and more, highlighting its versatility and adaptability.
The body of the Series BBV-1 is forged from 316 stainless steel bar stock, ensuring durability and resistance to corrosion in harsh environments.
Designed to withstand repeated open and close operations, ensuring long-term reliability and performance in demanding industrial settings.
Suited to control a variety of fluids including oil, water, toxic fluids, chemicals, air, and steam, offering flexibility and compatibility with different media commonly encountered in industrial processes.
The 3-valve block manifold consists of two isolate valves and one equalizing valve, providing versatile flow control capabilities and options for system configuration.
Each valve stem is precision machined with hard seats, reducing operating torque and ensuring smooth operation and precise control over fluid flow.
The manifold's capabilities make it suitable for a broad range of applications where reliable flow control and durability are essential, ensuring its relevance across various industrial sectors.
