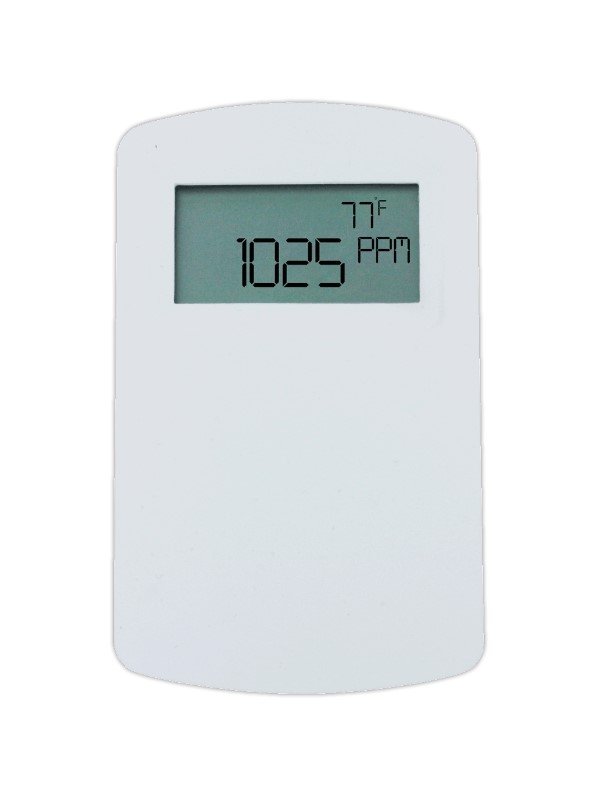

Dwyer Instruments CDT-2N44-LCD | Carbon Dioxide/Temperature | Wall Mount | Universal current/voltage output | North American Housing | LCD Display
The Dwyer CDT-2N44-LCD is a wall-mount carbon dioxide and temperature transmitter with a 0-2000 ppm CO₂ range, universal 4-20 mA, 0-5 VDC or 0-10 VDC CO₂ output, an analog temperature output and an integral LCD display. It is designed for indoor CO₂ monitoring, demand-controlled ventilation and building automation applications. Genuine stock at General Tech Services LLC, UAE, with free UAE-wide shipping. Request a quote in under a minute - call +971 6 5436933.
Part No. CDT-2N44-LCD
Product Overview
The Dwyer Series CDT Carbon Dioxide Transmitters accurately monitor CO₂ concentration and temperature in indoor environments to support ventilation control and energy-saving strategies. The CDT-2N44-LCD is a wall-mount model with a North American housing, a 0-2000 ppm CO₂ range, an analog temperature output and an integral LCD display.
A single-beam, dual-wavelength NDIR sensor automatically compensates for light-source aging effects in both occupied and unoccupied buildings. The transmitter provides digital barometric pressure adjustment and field calibration capability for accurate measurement.
The CO₂ output is universal and can be selected as 4-20 mA, 0-5 VDC or 0-10 VDC to match the connected controller. Push buttons provide access to the menu structure, while an internal DIP switch can lock the menu to help prevent unwanted changes. Backplate electrical connections simplify installation.
The CDT-2N44 is the same transmitter configuration without the integral LCD display.
Key Benefits
- Measures CO₂ from 0-2000 ppm and provides an analog temperature output.
- Single-beam, dual-wavelength NDIR sensor with a 15-year life expectancy.
- Universal CO₂ output selectable as 4-20 mA, 0-5 VDC or 0-10 VDC.
- Combines CO₂ and temperature measurement in one transmitter.
- Integral LCD display provides local indication.
- Digital barometric pressure adjustment supports measurement compensation.
- Field calibration capability simplifies commissioning and maintenance.
- Internal DIP switch can lock the menu to help prevent tampering.
- Backplate electrical connection simplifies installation.
- CDT-2N44 is available as the non-LCD configuration.
- Genuine Dwyer stock with free UAE-wide shipping.
Who This Product Is Best For
- Schools, offices and hospitals using demand-controlled ventilation.
- Commercial HVAC and building automation projects requiring CO₂ and temperature monitoring.
- Projects specifying wall-mounted CO₂ sensing with universal analog outputs.
- LEED-oriented ventilation monitoring applications.
- HVAC control systems requiring selectable 4-20 mA, 0-5 VDC or 0-10 VDC CO₂ output.
- Installations requiring local CO₂ and temperature indication through an integral LCD.
How to Specify & Commission It
- Confirm the 0-2000 ppm CO₂ range, temperature output and wall-mount North American housing are suitable for the application.
- Mount the transmitter according to the installation manual and selected indoor location.
- Wire the power supply and select the required 4-20 mA, 0-5 VDC or 0-10 VDC CO₂ output.
- Set the barometric pressure and perform field calibration if required.
- Configure the transmitter menu and lock it with the internal DIP switch if required.
- Verify CO₂ and temperature readings at the connected controller and LCD.
Frequently Asked Questions
What does the CDT-2N44-LCD measure?
It measures CO₂ from 0-2000 ppm and provides an analog temperature output.
What CO₂ outputs are available?
The CO₂ output is selectable between 4-20 mA, 0-5 VDC and 0-10 VDC.
How accurate is the CDT-2N44-LCD?
CO₂ accuracy is ±40 ppm + 3% of reading at 2000 ppm. Temperature accuracy is ±1°C at 25°C.
What sensor technology is used?
It uses a single-beam, dual-wavelength NDIR CO₂ sensor with a stated 15-year life expectancy.
Does the transmitter have a display?
Yes. The CDT-2N44-LCD has an integral LCD display. The CDT-2N44 provides the same transmitter configuration without the integral LCD.
Is the CDT-2N44-LCD wall or duct mounted?
The CDT-2N44-LCD is a wall-mount model with a North American housing.
Can the sensor be field calibrated?
Yes. The transmitter provides field calibration capability and digital barometric pressure adjustment.
Is genuine stock available with UAE shipping?
Yes. Genuine Dwyer stock is available from General Tech Services LLC, UAE, with free UAE-wide shipping. Call +971 6 5436933 for pricing and current availability.
