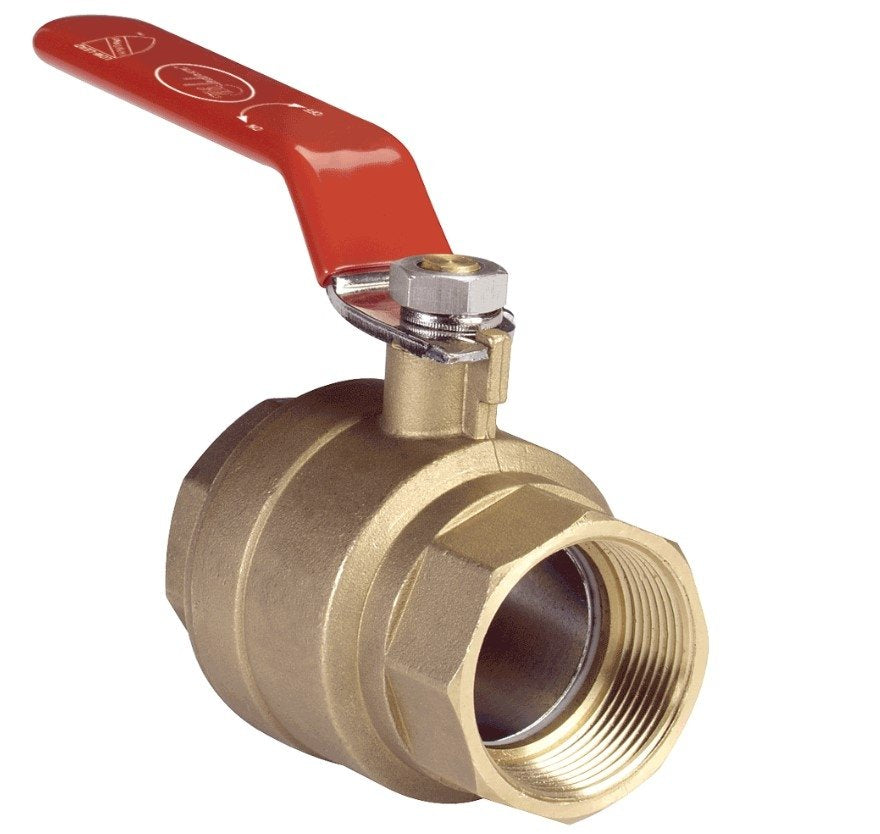

Dwyer Instruments DBV-08 | Brass ball valve | 600 psi | Full port | 2-1/2"
The Dwyer DBV-08 brass ball valve is an economical 2-1/2" female-NPT hand-lever ball valve designed for commercial and industrial manual shutoff applications. Its full-port design provides minimal flow restriction when fully open, while the low-lead brass construction, PTFE seats and stem packing support reliable service in threaded piping systems.
Part Number: DBV-08
The Dwyer DBV-08 is a hand-operated brass ball valve featuring 2-1/2" female NPT connections on both ends. It is designed for straightforward manual isolation of commercial and industrial piping systems where threaded connections are required.
The valve uses brass for the body, cap, and stem, with PTFE seats and stem packing for a durable, low-friction sealing arrangement. Its blowout-proof stem remains captive under overpressure, providing an added safety feature during operation.
The full-port bore matches the internal diameter of the pipe, helping minimize flow restriction when the valve is fully open. With a maximum pressure rating of 600 psi, the DBV-08 is suitable for general water and process shutoff points where a robust threaded brass valve is required.
The DBV-08 uses low-lead brass construction and a simple hand-lever design, making it suitable for installations where reliable manual shutoff and easy operation are important.
If you need a different pipe size, the Dwyer range also includes the DBV-07, a 2" NPT brass ball valve with the same 600 psi pressure rating.
Key Benefits
- 2-1/2" female NPT connections on both ends
- Full-port design for minimal flow restriction when fully open
- Blowout-proof stem for added safety under overpressure
- Low-lead brass body, cap, and stem
- PTFE seats and stem packing for reliable sealing
- Hand-lever operation for straightforward manual shutoff
- Maximum pressure rating of 600 psi
- Suitable for commercial and industrial piping applications
Who This Product Is Best For
The Dwyer DBV-08 is suitable for contractors, maintenance teams, facilities managers, and industrial users who need an economical full-port brass ball valve for 2-1/2" threaded piping.
It can be used at manual shutoff points in commercial and industrial water and general process piping systems where female NPT connections are required.
How to Use
- Install the DBV-08 into the 2-1/2" NPT piping connection using an appropriate thread sealant.
- Tighten the connection according to the pipe manufacturer's guidance, avoiding excessive force that could damage the brass body.
- Operate the hand lever fully open and closed to verify smooth valve movement.
- Check the installation for proper sealing before placing the piping system into service.
Frequently Asked Questions
What connection type does the Dwyer DBV-08 use?
The DBV-08 has 2-1/2" female NPT connections on both ends.
What is the maximum pressure rating?
The Dwyer DBV-08 is rated for a maximum pressure of 600 psi.
Is the DBV-08 a full-port valve?
Yes. Its full-port bore helps minimize flow restriction when the valve is fully open.
What material is the valve made from?
The body, cap, and stem are made from low-lead brass. The valve uses PTFE seats and stem packing.
Does the DBV-08 have a blowout-proof stem?
Yes. The blowout-proof stem is designed to remain captive under overpressure.
What is the maximum operating temperature?
The maximum operating temperature is 365°F (185°C), with a minimum operating temperature of -40°F (-40°C).
What is the difference between the DBV-08 and DBV-07?
Both are part of the same Dwyer brass ball valve range and share the same full-port design and 600 psi pressure rating. The main difference is pipe size: the DBV-08 is 2-1/2" NPT, while the DBV-07 is 2" NPT.
Does GeneralTech Shop deliver the DBV-08 across the UAE?
Contact GeneralTech Shop at +971 6 5436933 to confirm availability and delivery timelines for your emirate.
Request a Quote
Ready to order the Dwyer DBV-08 brass ball valve?
Request a quote in under a minute. Contact GeneralTech Shop for pricing, availability, and UAE delivery information.
