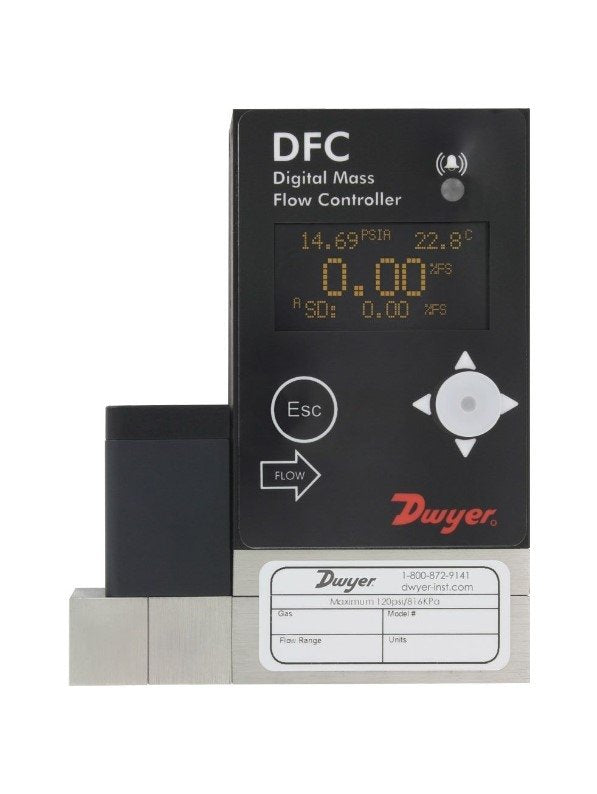

Dwyer DFC-39010-V-ALA2 | Digital Flow Controller | 0-2 l/min, 1/8" Fittings, RS-232/485
Part Number : DFC-39010-V-ALA2
The Dwyer DFC-39010-V-ALA2 controls gas flow over 0-2 l/min through 1/8" compression fittings. It combines a straight tube sensor with a restrictor flow element and displays temperature, pressure, mass flow and volumetric flow simultaneously.
- Outputs: 0-5 VDC and RS-232, with RS-485 as a selectable option; accuracy ±(0.5% of reading + 0.2% FS)
- FKM O-rings and stainless wetted parts; maximum pressure 120 psig (8.27 bar); -10 to 60°C
- Includes NIST-traceable certificate; programmable solid state relay
- ±0.2% FS repeatable, 150 ms response; 12-26 VDC supply
