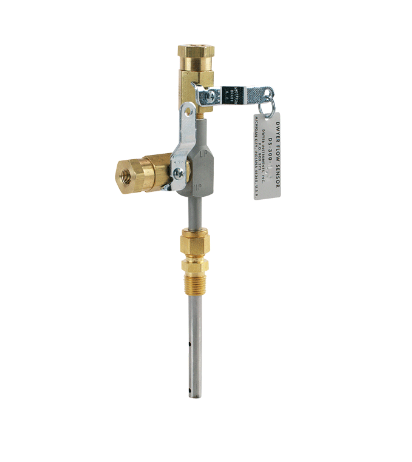

Dwyer DS-300-10-LV | Averaging Pitot Flow Sensor | 10" Pipe, Without Valves

Name: Dwyer DS-300-10-LV | Averaging Pitot Flow Sensor | 10" Pipe, Without Valves
Brand: Dwyer
SKU: DS-300-10-LV
Availability: OutOfStock

Part Number : DS-300-10-LV

The Dwyer DS-300-10-LV is a Series DS-300 in-line averaging Pitot tube flow sensor for 10" schedule 40 pipe, supplied without valves. Paired with a differential pressure gauge of suitable range, the DS-300-10-LV senses the flow rate of compatible gases and liquids.

10" pipe size for the Series DS-300 — version without valves
DS-300-10-LV installs with the included 1/4" male NPT compression fitting
Instrument side of the DS-300-10-LV: 1/8" female NPT; a 1/8" female NPT x 1/4" SAE 45° flared adaptor is optional, sold separately
304 SS sensor tube with brass compression fitting (DS-300-10-LV)
DS-300-10-LV rated to 200 psig (13.78 bar) at 200°F (93.3°C)

Availability: in stock

Free Kuwait shipping available

Specifications
Features
Downloads

Part Number	DS-300-10-LV
Brand	Dwyer
Type	In-Line Averaging Flow Sensor
Pipe Size	10" (schedule 40)
Valves	Without valves
Piping Connection	1/8" female NPT (1/8" female NPT x 1/4" SAE 45° flared adaptor optional, sold separately)
Process Connection	1/4" male NPT compression fitting (included)
Sensor Tube	304 SS
Compression Fitting	Brass
Max. Operating Pressure	200 psig (13.78 bar) at 200°F (93.3°C)
Max. Operating Temperature	200°F (93.3°C)
Media	Compatible gases and liquids

Time-saving single point velocity pressure measurement doesn't require "traversing" the flowing stream thanks to multiple sensing point measurement and built-in averaging capability.
Pitot tubes are a tried-and-true device that has been used for years in flow measurement.
Each model has an easy-to-use, fast-acting quarter-turn ball valve with 1/8" female NPT valve assembly process connections to isolate the sensor for zeroing.
Both pressure connections have instrument shut-off valves with 1/8" female NPT connectors that are rated for 200 psig (13.7 bar) and 200°F (93.3°C).
In cases where valves are not necessary, it is less expensive to exclude them.
The exceptional 3/4" dia. stainless steel used in the construction of the Series DS-400 Averaging Flow Sensors allows them to withstand the additional stresses encountered at higher flow rates with both water and air.
Economical flow indicator when coupled with a differential pressure gauge that is suitable.
Sturdy construction results in a sturdy, non-clogging design.
