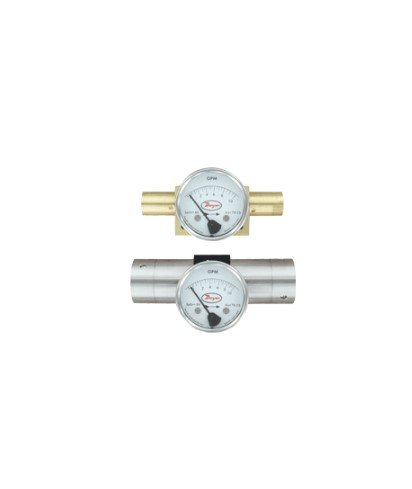

Dwyer DTFO-3S-30O | Variable-Area Oil Flowmeter | 0-30 GPM oil, 1" NPT, SS body
Dwyer DTFO-3S-30O: a 1" NPT variable-area flowmeter with a 0-30 GPM range, set up for oil. For a horizontal line, the DTFO-3S-30O comes pre-calibrated and its 316 stainless steel body is rated to 1500 psig (100 bar).
- DTFO-3S-30O accuracy: ±2% FS; repeatability ±1% FS
- 0-30 GPM oil scale on a 63.5 mm (2.5") dial (DTFO-3S-30O)
- DTFO-3S-30O wetted parts: 302 SS spring and range spring, PTFE-coated magnet, acetal or PTFE metering cone, Buna seals
- DTFO-3S-30O weighs 10 lb (4.54 kg)
- DTFO-3S-30O operating temperature: -40 to 200°F (-40 to 93°C)
- Specifications
- Features
- Downloads
| Part Number | DTFO-3S-30O |
| Brand | Dwyer |
| Type | Variable-area flowmeter |
| Accuracy | ±2% FS |
| Repeatability | ±1% FS |
| Mounting | Horizontal line (pre-calibrated) |
| Process Connection | 1" NPT |
| Max. Operating Pressure | 1500 psig (100 bar) |
| Flow Range | 0-30 GPM oil |
| Other Wetted Parts | 302 SS spring and range spring, PTFE-coated magnet, acetal or PTFE metering cone, Buna seals |
| Weight | 10 lb (4.54 kg) |
| Body Material | 316 SS |
| Operating Temperature | -40 to 200 °F (-40 to 93 °C) |
| Dial Face | 2.5" (63.5 mm) diameter |
- Strong dependability and the capacity to tolerate system pressures of up to 3000 psig (200 bar) are guaranteed by the sturdy metal construction.
- Unlike glass tube variable area flowmeters, the shatterproof design ensures a long operational life.
- Perform precisely in situations with strong vibration, high temperature, and a high risk of shock.
