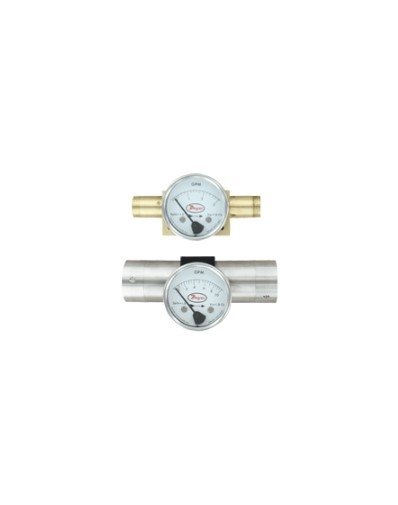

Dwyer DTFW-1B-1W | Variable-Area Liquid Flowmeter | 0-1 GPM water, 1/4" NPT, brass body

Part Number : DTFW-1B-1W

The Dwyer DTFW-1B-1W is a variable-area flowmeter calibrated for water, reading 0-1 GPM through a 1/4" NPT connection. The DTFW-1B-1W is rated to 3000 psig (200 bar) with a brass body and is calibrated for installation in a horizontal line.

  • DTFW-1B-1W accuracy: ±2% FS; repeatability ±1% FS
  • 0-1 GPM water scale on a 63.5 mm (2.5") dial (DTFW-1B-1W)
  • DTFW-1B-1W wetted parts: 302 SS range spring, PTFE-coated magnet, acetal or PTFE metering cone, Buna seals
  • DTFW-1B-1W weighs 3 lb (1.36 kg)
  • DTFW-1B-1W operating temperature: -40 to 200°F (-40 to 93°C)
