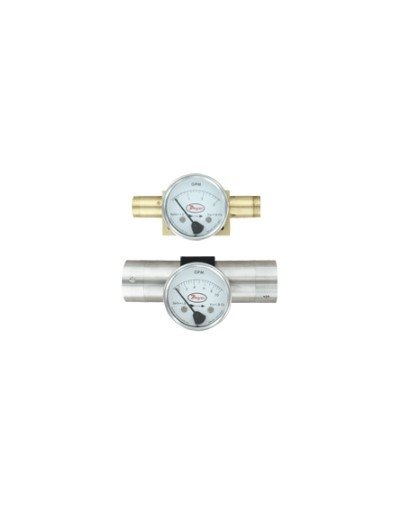

Dwyer DTFW-1B-3W | Variable-Area Liquid Flowmeter | 0-3 GPM water, 1/4" NPT, brass body
Dwyer DTFW-1B-3W: a 1/4" NPT variable-area flowmeter with a 0-3 GPM range, set up for water. For a horizontal line, the DTFW-1B-3W comes pre-calibrated and its brass body is rated to 3000 psig (200 bar).
- ±2% FS accuracy and ±1% FS repeatability on the DTFW-1B-3W
- 2.5" (63.5 mm) dial reading 0-3 GPM water (DTFW-1B-3W)
- DTFW-1B-3W wetted parts: 302 SS range spring, PTFE-coated magnet, acetal or PTFE metering cone, Buna seals
- DTFW-1B-3W weighs 3 lb (1.36 kg)
- DTFW-1B-3W operating temperature: -40 to 200°F (-40 to 93°C)
- Specifications
- Features
- Downloads
| Part Number | DTFW-1B-3W |
| Brand | Dwyer |
| Type | Variable-area flowmeter |
| Accuracy | ±2% FS |
| Repeatability | ±1% FS |
| Mounting | Horizontal line (pre-calibrated) |
| Process Connection | 1/4" NPT |
| Max. Operating Pressure | 3000 psig (200 bar) |
| Flow Range | 0-3 GPM water |
| Other Wetted Parts | 302 SS range spring, PTFE-coated magnet, acetal or PTFE metering cone, Buna seals |
| Weight | 3 lb (1.36 kg) |
| Body Material | Brass |
| Operating Temperature | -40 to 200 °F (-40 to 93 °C) |
| Dial Face | 2.5" (63.5 mm) diameter |
- Strong dependability and the capacity to tolerate system pressures of up to 3000 psig (200 bar) are guaranteed by the sturdy metal construction.
- Unlike glass tube variable area flowmeters, the shatterproof design ensures a long operational life.
- Perform precisely in situations with strong vibration, high temperature, and a high risk of shock.
