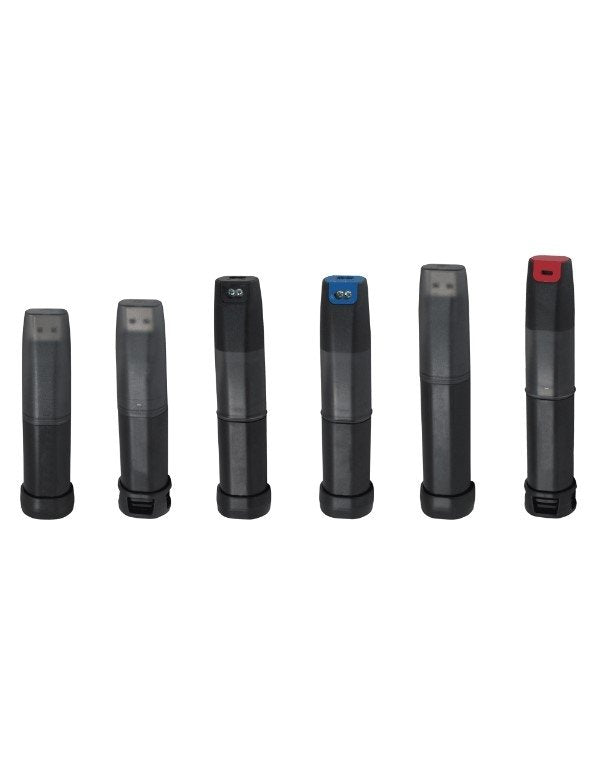

Dwyer DW-USB-6 | Compact USB Data Logger | Thermocouple Input
For thermocouple recording, the Dwyer DW-USB-6 is a pocket-sized USB data logger with LED alarm and low-battery indicators. The DW-USB-6 keeps 32,764 readings and samples at 1 s to 12 h intervals.
- 32,764 readings capacity; 1 s to 12 h sample rate
- Powered by a 3.6 V 1/2 AA lithium battery; LEDs show alarm and low-battery status
- IP67 with protective cover in place; software sets units, high/low alarms, start time and sampling rate
- Specifications
- Features
- Downloads
| Part Number | DW-USB-6 |
| Brand | Dwyer |
| Weight | 1.5 oz (43 g) |
| Power | 3.6 V 1/2 AA lithium battery, user replaceable |
| Memory | 32,764 readings |
| Interface | USB port |
| Approvals | CE |
| Sampling Rate | 1 s to 12 h |
| Housing | ABS plastic blend |
| Alarm | Programmable high/low |
| Input | Thermocouple |
- Fulfills IP67 requirements when the protective cap is used.
- The all-in-one device connects to a PC without a cord.
- For visual verification, use LED status indicators.
- An integrated LCD display is optional for local indication.
