Dwyer Instruments GSTA-N-LCD-FC | Nitrogen transmitter with universal current/voltage outputs | LCD display | Includes factory calibration certificate
Part No. GSTA-N-LCD-FC
Genuine Dwyer Instruments GSTA-N-LCD-FC nitrogen dioxide transmitter, in stock at General Tech Services LLC, UAE. This wall-mount NO₂ transmitter provides field-selectable current or voltage outputs, an integral LCD display and a factory calibration certificate for monitoring diesel-engine exhaust in garages, loading docks and mechanical rooms. Free UAE-wide shipping. Request a quote in under a minute - call +971 6 5436933.
Product Overview

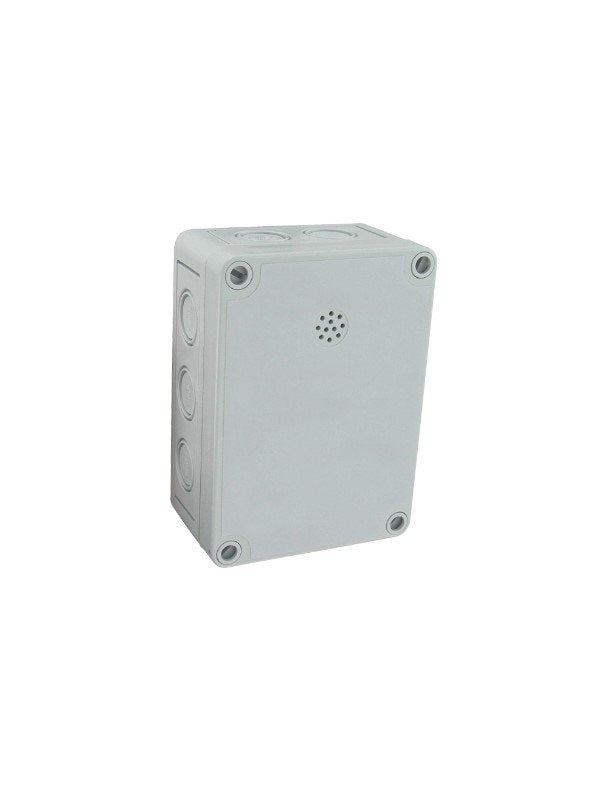

The Dwyer GSTA-N-LCD-FC is a wall-mount nitrogen dioxide (NO₂) transmitter designed for monitoring diesel-engine exhaust in underground parking garages, loading docks, mechanical rooms and other ventilation applications.
The Series GSTA provides field-selectable analog outputs of 4-20 mA, 0-5 V, 0-10 V, 1-5 V or 2-10 V, allowing the transmitter to interface with a wide range of building management and control systems. Internal DIP switches can also be used to invert the output signal when required.
The GSTA-N-LCD-FC uses the standard 0-10 ppm NO₂ range and includes an integral LCD display for local readings. Its industrial-grade sensor is field replaceable and can be field-calibrated using the A-449 remote LCD service display. The display also indicates when the sensor has reached the end of its service life and needs to be replaced.
The -FC version includes a factory calibration certificate. The GSTA-N-LCD version has the same core configuration without the factory calibration certificate.
Key Benefits
- Monitors nitrogen dioxide from diesel-engine exhaust
- Standard 0-10 ppm NO₂ measurement range
- Field-selectable 4-20 mA, 0-5 V, 0-10 V, 1-5 V or 2-10 V output
- Output can be inverted using internal DIP switches
- Integral LCD display for local gas concentration readings
- Industrial-grade, field-replaceable sensor
- A-449 remote LCD service display for field calibration and service
- Wall-mount configuration for mechanical rooms, garages and loading docks
- Factory calibration certificate included with the GSTA-N-LCD-FC
- Free UAE-wide shipping on genuine Dwyer Instruments stock
Who This Product Is Best For
- Underground parking garages requiring NO₂ monitoring for diesel-engine exhaust
- Loading docks requiring nitrogen dioxide monitoring
- Mechanical rooms and ventilation systems requiring NO₂ detection
- BMS integrators using selectable analog current or voltage signals
- Facilities requiring a local LCD display together with a field-serviceable gas sensor
How to Specify & Commission It
- Confirm the application, mounting location and required gas type: nitrogen dioxide (NO₂).
- Install the GSTA-N-LCD-FC in a suitable wall-mount location according to the manufacturer's installation requirements.
- Select the required analog output: 4-20 mA, 0-5 V, 0-10 V, 1-5 V or 2-10 V.
- Configure the output direction using the internal DIP switches if signal inversion is required.
- Wire the power supply and selected analog output to the building management or control system.
- Use the A-449 remote LCD service display for field calibration when required, then verify the NO₂ reading and output signal.
Frequently Asked Questions
What gas does the GSTA-N-LCD-FC detect?
The transmitter detects nitrogen dioxide (NO₂), making it suitable for monitoring diesel-engine exhaust.
What is the standard measurement range?
The standard GSTA-N-LCD-FC range is 0-10 ppm NO₂.
What output signals are available?
The transmitter provides field-selectable 4-20 mA, 0-5 V, 0-10 V, 1-5 V or 2-10 V outputs.
Can the output signal be inverted?
Yes. The output can be inverted using the transmitter's internal DIP switches.
Does the GSTA-N-LCD-FC have a display?
Yes. It has an integral LCD display for local readings.
Is the GSTA-N-LCD-FC wall mount or duct mount?
It is a wall-mount nitrogen dioxide transmitter with an integral LCD display.
Can the sensor be replaced?
Yes. The GSTA-N-LCD-FC uses an industrial-grade field-replaceable sensor.
How is the sensor calibrated?
The sensor can be field-calibrated using the A-449 remote LCD service display. The display also indicates when sensor replacement is required.
What does the -FC suffix mean?
The -FC suffix indicates that the transmitter is supplied with a factory calibration certificate. The standard GSTA-N-LCD has the same core configuration without the factory calibration certificate.
Is genuine GSTA-N-LCD-FC stock available with UAE shipping?
Yes. Genuine Dwyer Instruments stock is available through General Tech Services LLC, UAE, with free UAE-wide shipping. Call +971 6 5436933 for pricing and current availability.
