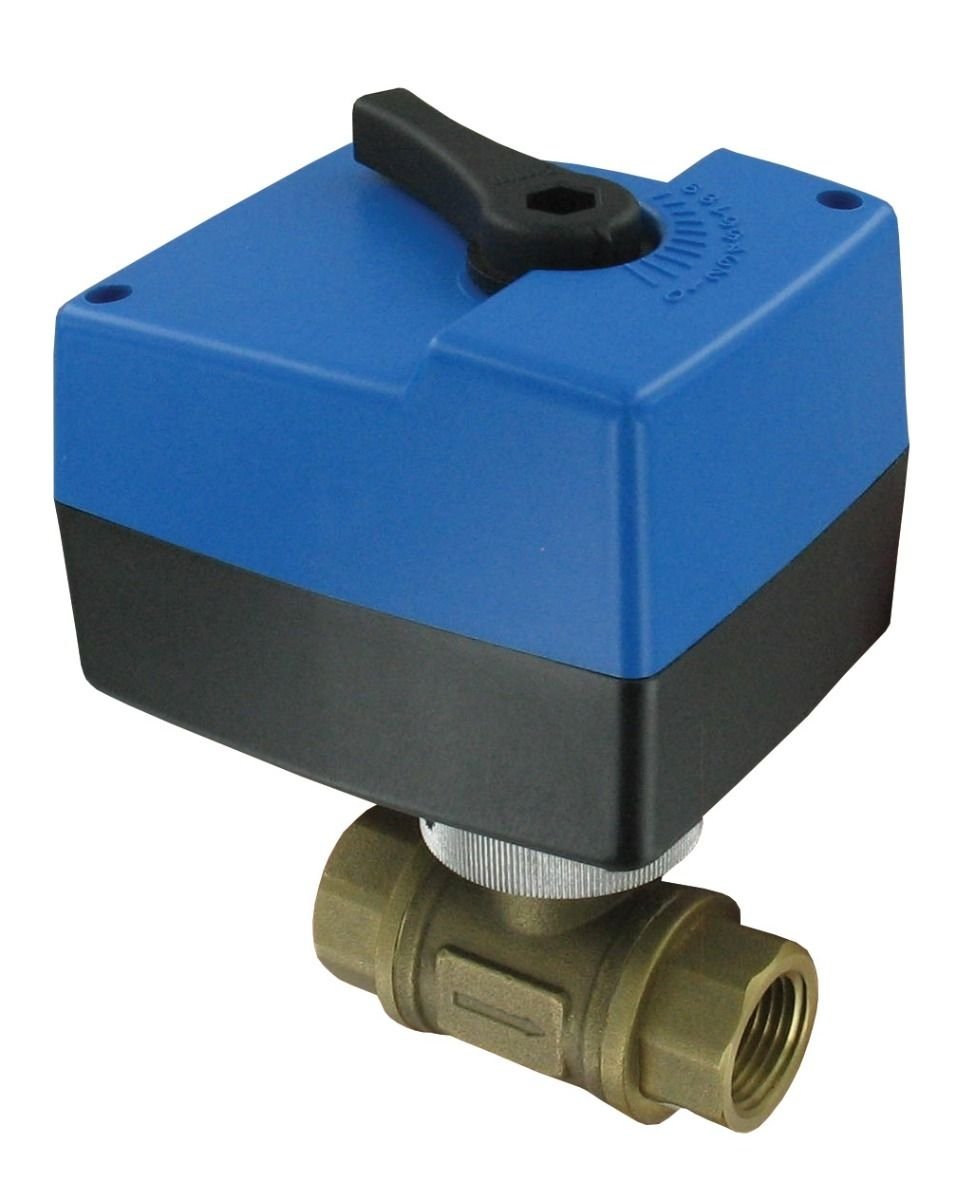

Dwyer Instruments HBAV0514 | 2-Way ball valve | 1-1/4" NPT | Floating | 24 VAC
A motorized 2-way ball valve with a 1-1/4" NPT connection, floating control and a 24 VAC actuator, built for automated on/off or flow-modulating HVAC and process control. Free UAE shipping.
Request a quote in under a minute - call +971 6 5436933.
Part No. HBAV0514
The Dwyer HBAV0514 combines a 1-1/4" NPT ball valve body with an electric actuator, replacing manual operation with automated control from a BMS or local controller. It accepts a floating three-point control signal, allowing the actuator to be driven open or closed using simple open, close and stop outputs.
The 24 VAC actuator supply is suitable for common building and industrial control systems. The valve uses a full-bore design to help maintain low pressure drop when fully open, making the HBAV0514 suitable for HVAC and process applications requiring remote or scheduled valve operation.
The HBAV0514 can also be considered for retrofitting an existing manually operated 1-1/4" NPT shutoff point, provided the valve, actuator, control signal and process requirements are compatible.
Need a different specification? The Dwyer range also includes the HBAV0524 Electric Ball Valve (1-1/4" NPT, Modulating Control, 24 VAC) for applications requiring proportional modulating control.
Ready to order the HBAV0514? Speak to our team. Call +971 6 5436933.
Key Benefits
- 1-1/4" NPT ball valve body with electric actuator
- Floating control for automated open, close and stop sequencing
- 24 VAC actuator supply for compatible control systems
- Full-bore ball design helps keep pressure drop low when open
- Suitable for automated HVAC and process control
- Practical retrofit option for existing manual shutoff points
Who This Product Is Best For
- HVAC controls contractors requiring automated valve operation
- BMS integrators using floating three-point control
- Process control engineers requiring remote valve positioning
- Industrial facilities upgrading manual valves to electric operation
- System integrators working with 24 VAC control panels
How to Use
- Install the HBAV0514 in the HVAC or process line using the 1-1/4" NPT connection.
- Connect the 24 VAC actuator supply according to the manufacturer's wiring requirements.
- Connect the floating three-point control signal to the BMS or local controller.
- Configure the controller's open, close and stop operation as required.
- Verify that the actuator and valve respond correctly to the control signals and reach the required positions.
Frequently Asked Questions
What control signal does the HBAV0514 use?
The HBAV0514 uses floating three-point control with open, close and stop signals.
What supply voltage does the HBAV0514 require?
The actuator requires a 24 VAC supply.
What NPT size is the HBAV0514?
The valve has a 1-1/4" NPT connection.
Is the HBAV0514 full-bore?
Yes. Its full-bore ball design helps maintain low pressure drop when the valve is fully open.
Can the HBAV0514 replace an existing manual ball valve?
It can be considered for automating an existing 1-1/4" NPT manual valve application, provided the valve, actuator, control signal and process requirements are compatible.
Is the HBAV0514 suitable for BMS control?
Yes. Its floating three-point control arrangement can be connected to a compatible BMS or local controller.
Should I choose the HBAV0514 or HBAV0524?
The HBAV0514 uses floating three-point control, while the HBAV0524 uses proportional modulating control. Select the model that matches your BMS or controller.
Does GeneralTech Shop deliver the HBAV0514 across the UAE?
Yes. Call +971 6 5436933 and our team will confirm availability and delivery timelines for your emirate.
